Neomounts DS70S-950BL2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop
MPN:
DS70S-950BL2
Zīmols:
NEOMOUNTS
Montāžas veids:
Desk
Saderīgais Ekrāna izmērs:
88.9 cm (35")
421,37 €
/ ar PVN
348,24 €
/ bez PVN
/ ar PVN
/ bez PVN
2 Darba dienas
2 noliktavā
Apraksts
Produkta apraksts
Atgriešanas noteikumi
Piegādes informācija
Jautājumi?
Ekspertu palīdzība tikai viena klikšķa attālumā.
Kontakti
Produkta Apraksts

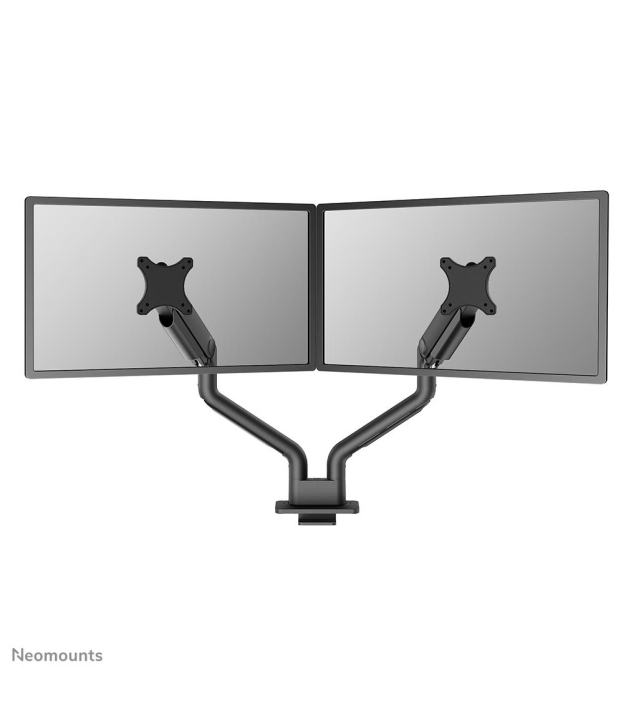

The Neomounts DS70S-950BL2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950BL2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.
The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Specifikācijas
Vispārīgi
Pagriešanas leņķis
360 °
Minimālais attālums līdz sienai
119 mm
Viegli uzstādāms
Jā
Roku skaits
2
Grozāms
Jā
Horizontālās pagrieziena leņķis
Cik tālu monitors var pagriezties pa kreisi/labi uz statīva.
-90 - 90 °
Attēlot
Min. atbalstītais ekrāna izmērs
17
Atbalstītie displeji
2
Maksimālā svara ietilpība uz vienu izliektu īpaši plato displeju
15 kg
Funkcijas
Maks. attālums līdz sienai
656 mm
Montāžas orientācija
Horizontāls: diska paplāte atveras uz priekšu. Vertikāls: diskdzinis ir uzstādīts stāvus.
Clamp/Grommet
Maks. galda biezums
55 mm
Saderība
Maks. VESA stiprinājums
100 x 100 mm
Maks. svara kapacitāte
18 kg
Maks. svars vienam ekrānam
18 kg
Min. VESA stiprinājums
75 x 75 mm
Fiziskie parametri
Svars
6.980000
Dziļums
656 mm
Augstums
579 mm
Platums
186 mm
Kabeļu pārvaldība
Jā
Augstuma regulēšana
Jā
Augstuma regulēšanas diapazons
202 - 522 mm
Stiprinājuma saskarne
100 x 100/75 x 75 mm
Krāsa
Melns
Noliekuma regulēšana
Jā
Noliekuma regulēšana
-90 - 90 °
Augstuma regulēšanas tips
Gas spring
Horizontālā pagrieziena regulēšana
Jā
Regulējams dziļums
Jā
Maks. galda biezums skavas stiprinājumam
50 mm
Dziļuma regulēšanas diapazons
88 - 625 mm
Min. galda biezums
10 mm
Grommet Mount Desk Thickness Max
55 mm
Minimālais svars
1 kg
Pagriešanas leņķa diapazons
-180 - 180 °
Platuma regulēšana
1159 mm
Platuma regulēšanas diapazons
0 - 1159 mm
Papildus
Izcelsmes valsts
China
Garantija
60;10 year(s)
SKU
1411015
EAN
8717371441227
HS kods
7616991099
