NET MEDIA CONVERTER 10KM/FX-SX/LX/LH MC220L TP-LINK
MPN:
MC220L
Zīmols:
TP-Link
42,46 €
/ ar PVN
35,09 €
/ bez PVN
/ ar PVN
/ bez PVN
Šī prece pašlaik nav pieejama.
Pierakstieties paziņojumam, kad prece būs pieejama.
Apraksts
Produkta apraksts
Atgriešanas noteikumi
Piegādes informācija
Jautājumi?
Ekspertu palīdzība tikai viena klikšķa attālumā.
Kontakti
Produkta Apraksts
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

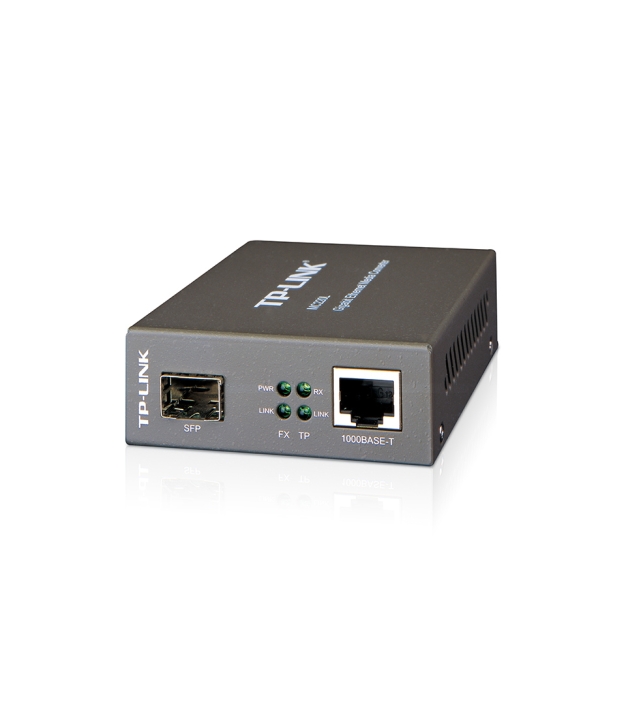

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifikācijas
Vispārīgi
Sertifikāti
FCC, CE
Atbilstība nozares standartiem
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
HS kods
85176990
Iekšējais diskdzinis
Norāda, vai diskdzinis ir paredzēts uzstādīšanai datora korpusa iekšienē.
Nē
Maks. datu pārsūtīšanas ātrums
1000 Mbit/s
Maksimālais pārraides attālums
10000 m
Darba mitrums
10 - 90 %
Garantija
60
Fiziskie parametri
Dziļums
73 mm
Izmēri (P×D×A)
94.5 x 73 x 27 mm
Augstums
27 mm
Krāsa
Melns
Platums
94.5 mm
Savienojumi
LAN ātrums
Gigabit Ethernet
LAN pieslēgvietu skaits
1
Optiskās šķiedras savienotājs
SFP
Optisko pieslēgvietu skaits
1
I O Ports
1x 1000M SC, 1x 1000M RJ45
Druka
Full Duplex
Jā
Attēlot
LED indikatori
Link
Papildus
SKU
1121182
EAN
6935364030476
Funkcijas
Auto Mdi Mdi X
Jā
Kabeļu tehnoloģija
UTP 5e, 5
Savienojuma veids
Wired
Fiber Mode Structure
Multi-mode/Single-mode
Barošana
Ārējais barošanas adapteris
Jā
Maks. enerģijas patēriņš
1.7 W
Tīkls
Ethernet datu ātrumi
1000 Mbit/s
Tīkla standarti
IEEE 802.1ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
