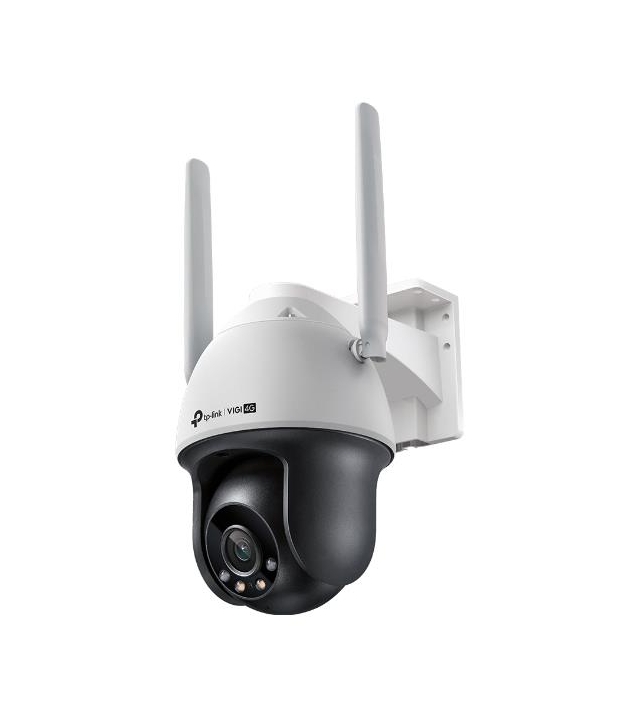

TP-Link VIGI C540-4G Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
MPN:
VIGIC540-4G(4MM)
Zīmols:
TP-Link
Savienojuma veids:
Wired
Nakts redzamība:
Jā
Izšķirtspēja:
2560 x 1440 pixels
242,51 €
/ ar PVN
200,42 €
/ bez PVN
/ ar PVN
/ bez PVN
Šī prece pašlaik nav pieejama.
Pierakstieties paziņojumam, kad prece būs pieejama.
Apraksts
Produkta apraksts
Atgriešanas noteikumi
Garantija
Piegādes informācija
Jautājumi?
Ekspertu palīdzība tikai viena klikšķa attālumā.
Kontakti
Produkta Apraksts
Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Specifikācijas
Attēli
Attēla kvalitātes regulēšana
Brightness/Contrast/Mirror/Saturation/Sharpness
Vispārīgi
Veids
IP security camera
Modeļa nosaukums
C540-4G
3D pozicionēšana
Jā
Pamata notikums
Motion Detection, Camera Tampering Detection, Exception
Uzvedības analīze
Intrusion detection, Line crossing detection
Bitu pārraides ātruma diapazons
64 - 64 Kbit/s
Sertifikāti
CE/RoHS
Digital Wide Dynamic Range Dwdr
Jā
Tiešraides skats
Jā
Gaismas plūsma (lm)
0.005 lm
Spogulis
Jā
Number Of Simultaneous Live View Channels
3 channels
Number Privacy Masking Areas
4
Panoramēšanas ātrums
44 °/sec
Atiestatīšanas poga
Jā
Diskretizācijas frekvence
8 kHz
Krātuve
Saderīgo karšu veidi
MicroSD (TransFlash)
Iebūvēts HDD
Nē
Maks. atmiņas karte
256 GB
Savienojumi
Ethernet (LAN pieslēgvieta)
Vadu tīkla pieslēgvieta. Stabilāka un ātrāka par Wi-Fi biroja un serveru lietošanai.
Jā
Karšu lasītājs
Jā
LAN pieslēgvietu skaits
1
SIM tips
NanoSIM
3G standarti
WCDMA
4G standarts
LTE-TDD & LTE-FDD
LAN ātrums
Fast Ethernet
SIM kartes slots
Jā
Akumulators un drošība
Paroles aizsardzība
Jā
Audio
Bitu dziļums / bitu ātrums
256 Kbps - 4 Mbps
Iebūvētais mikrofons
Jā
Iebūvētie skaļruņi
Jā
Barošana
Barošanas avots
DC
DC izejas spriegums
12
Kamera
Slēģa ātrums
Ekspozīcijas laika diapazons. Ātrāks slēdzis samazina kustību miglojumu.
1/3 - 1/10000 s
Kadru frekvence
Kadri sekundē. 30 k/s = standarts; 60 k/s = gludāks video.
30 fps
IR izslēgšanas filtrs
Mehāniski noņem IR filtru naktī patiesai nakts redzamībai.
Jā
LED tips
IR/White
Sensora izmērs
Lielāks sensors = labāka mazas gaismas veiktspēja.
1/3.06
Sensora tips
CMOS: lielākā daļa kameru mūsdienās. CCD: vecāks, augstāka kvalitāte. BSI: labāka nakts uzņemšana.
CMOS
Video izšķirtspējas
1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Izšķirtspēja (MP)
Augstāka izšķirtspēja = vairāk detaļu. 12MP+ pietiek lielākajai daļai uzdevumu.
4 MP
Plašs dinamiskais diapazons (WDR)
Vienlaikus uztver detaļas gan gaišās, gan tumšās zonās.
Jā
Optiskais tālummaiņas koeficients
Optiskā tālummaiņa izmanto objektīvu (kvalitāte saglabājas). Digitālā apgriež attēlu.
Jā
Bitu ātruma kontrole
VBR: mainīgais bitu ātrums (labāka kvalitāte). CBR: nemainīgs (paredzama joslas platums).
Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noteikšanas attālums
80 m
Identifikācijas attālums
8 m
Redzes lauks (diagonāle)
94 °
Redzes lauks (horizontāle)
80 °
Redzes lauks (vertikāle)
43 °
Maks. apertūra (f-skaitlis)
Zemāks f-skaitlis = platāka apertūra = labāka darbība mazā gaismā.
1.6
Nakts redzamība
Jā
IR nakts redzamības attālums
30 m
Trokšņa samazinājums
Jā
Trokšņa samazinājuma tehnoloģija
3D DNR: labāka kvalitāte, samazina temporālo troksni. 2D DNR: zemāks latentums.
3D noise reduction
IR LED skaits
4
Novērojumu attālums
33 m
Atpazīšanas attālums
16 m
Signāla un trokšņa attiecība
Augstāka SNR (dB) = tīrāks attēls ar mazāk graudu/trokšņu. 50+ dB ir labs.
52 dB
PTZ pagriešanas vadība
Jā
PTZ sasvēršanas vadība
Jā
Panoramēšanas diapazons
0 - 348 °
Video straumēšana
Jā
Objektīva diametrs
4 mm
Minimālais diafragmas skaitlis
1.6
Tīkls
Digest autentifikācija
Jā
IP adreses filtrēšana
Jā
Tīkla protokoli
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Funkcijas
Automātiskās patrulēšanas režīms
Jā
HTTPS šifrēšana
Jā
Kameru skaits
1
Privātuma maskēšana
Bloķē noteiktas zonas no ierakstīšanas privātuma aizsardzībai.
Jā
Video saspiešanas formāts
H.265 (HEVC): pusi glabāšanas salīdzinot ar H.264 pie tās pašas kvalitātes.
H.264/H.264+/H.265/H.265+
AI / viedās funkcijas
AI analīze: sejas atpazīšana, līnijas šķērsošana, ielaušanās noteikšana.
Human detection
Fiziskie parametri
Svars
0.690000
Formfaktors
Turret
IP aizsardzības klase
IP66: putekļu necaurlaidīgs + strūklas. IP67: ūdensizturīgs 1m/30min. IP68: ilgstoša iegremdēšana.
IP66
Montāžas veids
Ceiling/wall
Darba mitrums
0 - 95 %
Uzstādīšanas veids
Griesti: kupola kameras. Siena: lodes/kastes kameras. Stabs: āra kameras.
Iekštelpu un āra
Krāsa
Melns, Balts
Augstums
201 mm
Noliekuma regulēšana
0 - 120 °
Dziļums
182 mm
Platums
120 mm
Slīpuma ātrums
44 °/sec
Papildus
Sertifikāti
RCM, BSMI, VCCI, NTRA, KC
Garantija
24
SKU
1420740
EAN
4895252504910
