Access Point, TP-LINK, Omada, 1167 Mbps, IEEE 802.11ac, 1x10/100/1000M, EAP230-WALL
MPN:
EAP230-WALL
Brand:
TP-Link
€79.05
/ incl. VAT
€65.33
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Unprecedented Thin Design with 11mm

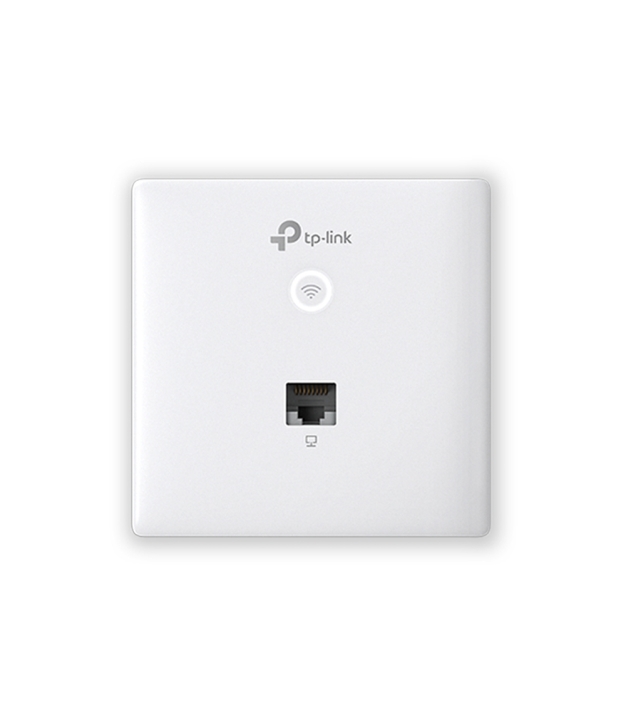

Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications
General
Warranty
60
Model Name
Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Band Steering
Yes
Beamforming
Yes
Certifications
CE/RoHS
Frequency Band
2.4 - 5 GHz
HS Code
85176990
Max Data Transfer Rate
1167 Mbit/s
Operating Humidity
10 - 90 %
Placement
Wall
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Reset Button
Yes
Series
Omada
Syslog
Yes
Web Based Management
Yes
Physical
Depth
86.8 mm
Height
30.2 mm
Width
86.8 mm
Colour
White
Processor
A 5 Ghz
Yes
A 6 Ghz
No
Maximum Data Transfer Rate 2 4 Ghz
300 Mbit/s
Maximum Data Transfer Rate 5 Ghz
867 Mbit/s
Maximum Tx Power 2 4 Ghz
Yes
Print
Automatic Channel Scanning
Yes
Connectivity
LAN Ports
1
Wi Fi Multimedia
Yes
Display
LED Indicators
Operation
Additional
SKU
1315165
EAN
6935364089481
Features
Access Control List Acl
Yes
Automatic Channel Selection
Yes
Cabling Technology
10/100/1000Base-T(X)
Service Set Identifier Ssid Features
Multiple SSIDs
Virtual Lan Features
Port-based VLAN/VLAN mapping
Power
Max Power Draw
25.5 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
9 W
Transmitting Power
20 - 23 dBm
Compatibility
Number Of Ssid Supported
16
Battery & Security
Security Protocols
128-bit WEP/152-bit WEP/64-bit WEP/SNMP/SNMPv2/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK
Operating System
Supported OS
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Networking
Antenna Features
Integrated antenna
Antenna Gain Level Max
3.6 dBi
Antenna Type
Internal
Antennas Quantity
2
Ethernet Data Rates
10/100/1000 Mbit/s
Mac Address Filtering
Yes
MIMO
Yes
Mimo Type
Multi User MIMO
Networking Standards
IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Poe
Yes
Vlan Support
Yes
Wan Connection
Ethernet (RJ-45)
