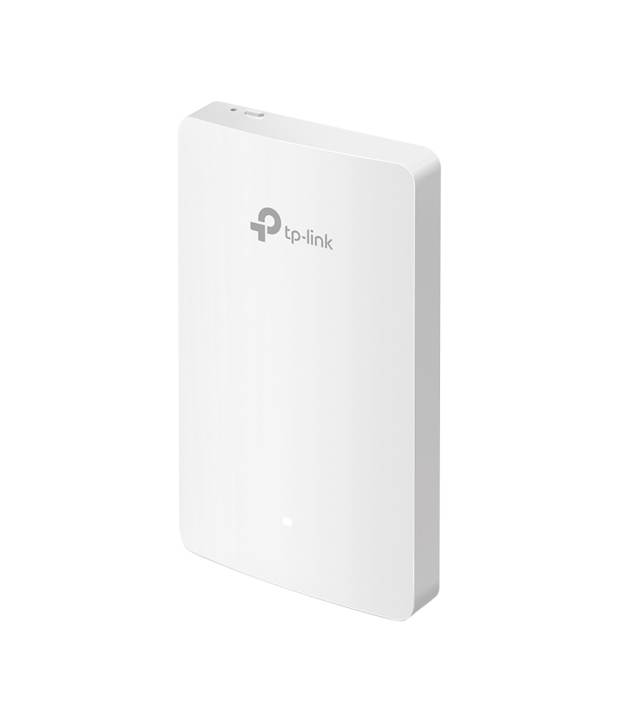

Access Point, TP-LINK, Omada, 1200 Mbps, IEEE 802.11a, IEEE 802.11 b/g, IEEE 802.11n, IEEE 802.11ac, EAP235-WALL
MPN:
EAP235-WALL
Brand:
TP-Link
€89.52
/ incl. VAT
€73.98
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications
General
Warranty
60
Model Name
EAP235-Wall
Band Steering
Yes
Beamforming
Yes
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Frequency Band
2.4 - 5 GHz
HS Code
85176990
Max Data Transfer Rate
1167 Mbit/s
Operating Humidity
10 - 90 %
Placement
Wall
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Reset Button
Yes
Series
Omada
Syslog
Yes
Web Based Management
Yes
Physical
Depth
86 mm
Height
20 mm
Width
143 mm
Colour
White
Processor
A 5 Ghz
Yes
A 6 Ghz
No
Maximum Data Transfer Rate 2 4 Ghz
300 Mbit/s
Maximum Data Transfer Rate 5 Ghz
867 Mbit/s
Maximum Tx Power 2 4 Ghz
Yes
Print
Automatic Channel Scanning
Yes
Connectivity
Cable Lock Slot
Yes
LAN Ports
4
Wi Fi Multimedia
Yes
Wireless Isolation
Yes
Display
LED Indicators
LAN/Power/Status/WAN/WLAN
Additional
SKU
1321977
EAN
6935364088972
Features
Access Control List Acl
Yes
Automatic Channel Selection
Yes
Cabling Technology
10/100/1000Base-T(X)
Service Set Identifier Ssid Features
Multiple SSIDs
Universal Plug And Play
Yes
Virtual Lan Features
Port-based VLAN/VLAN mapping
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
24.4 W
Transmitting Power
20 - 23 dBm;21 dBm
Compatibility
Number Of Ssid Supported
16
Battery & Security
Remote Authentication Dial In User Service Radius
Yes
Security Protocols
128-bit WEP/152-bit WEP/64-bit WEP/802.1x RADIUS/HTTPS/SNMP/SNMPv3/SSH/WPA/WPA2/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK
Operating System
Supported OS
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Networking
Antenna Features
Integrated antenna
Antenna Gain Level Max
4 dBi
Antenna Type
Internal
Antennas Quantity
2
Ethernet Data Rates
10/100/1000 Mbit/s
Mac Address Filtering
Yes
MIMO
Yes
Mimo Type
Multi User MIMO
Networking Standards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
Active PoE/Passive PoE
Vlan Support
Yes
Wan Connection
Ethernet (RJ-45)
