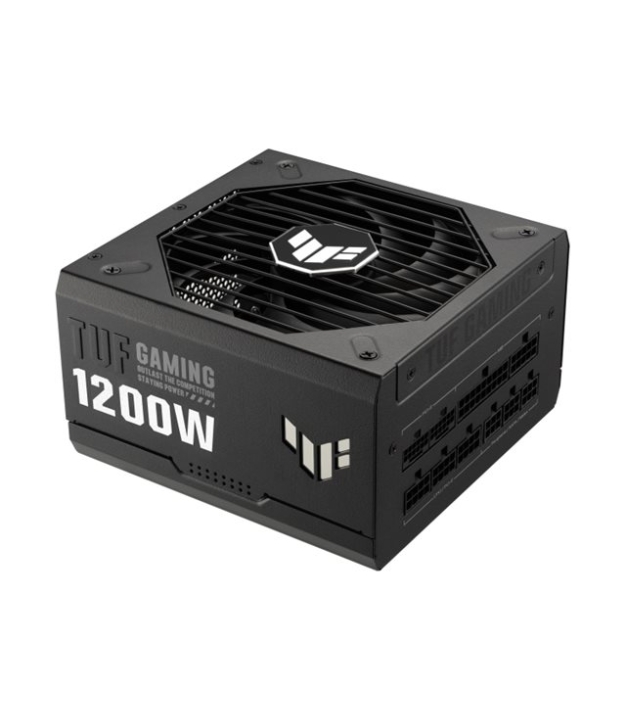

ASUS TUF Gaming 1200W Gold Fully Mod PSU
MPN:
90YE00S0-B0NA00
Brand:
Asus
Cable Management:
Fully-Modular
€229.42
/ incl. VAT
€189.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
ASUS TUF Gaming 1200W Gold Fully Modular Power Supply 80+ Gold Certified Military-grade Components Dual Ball Bearing
Specifications
General
Certifications
RoHS
Efficiency
92%
Part Number
90YE00S0-B0NA00
Power
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
1188 W
3.3V Rail Power
130 W
5V Rail Power
130 W
5VSB Rail Power
15 W
Max 12V Current
99 A
Max 3.3V Current
25 A
Max 5V Current
25 A
Max 5VSB Current
3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
5
Molex Connectors
4
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Total Power Output
1200 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
PCIe 16-pin Connector
2
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Pci Express Power Connectors 8 Pin
3
Processor
Cpu Power Cable Length
65 cm
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
135 mm
Fan Count
1 fan(s)
Features
Cable Ties Included
Yes
Compatibility
ATX Standard
3.1
Physical
Depth
150 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
61 cm
PCIe Cable Length
67.5 cm
Molex Cable Length
150, 400 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
SATA Power Cable Length
120, 400 mm
Additional
SKU
46345677
EAN
4711081786252
