Special offer

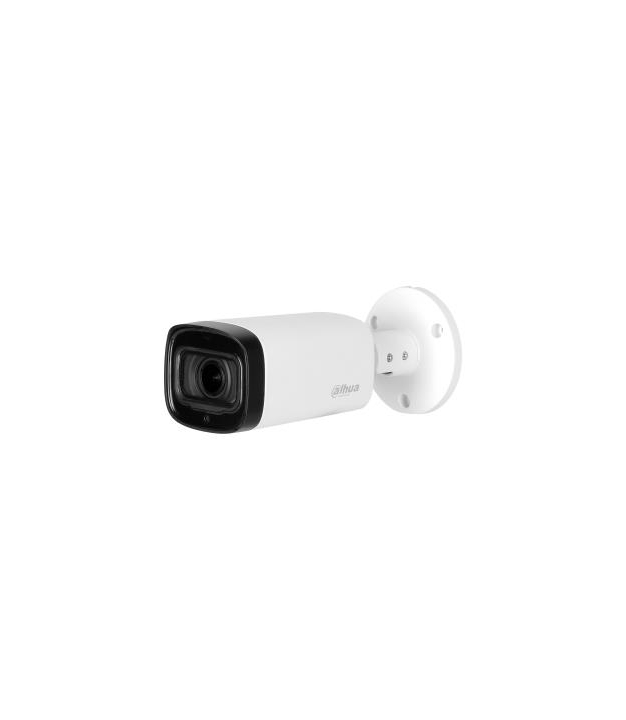

Dahua Technology Lite DH-HAC-HFW1231R-Z-A Bullet CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
MPN:
HAC-HFW1231R-Z-A-2712
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
1920 x 1080 pixels
€151.01
/ incl. VAT
€124.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.
Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.
Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.
Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua's advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.
Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.
Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.
Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua's advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.
Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
General
Model
HAC-HFW1231R-Z-A-2712
Type
CCTV security camera
Angle Rotation
360 °
Detect Distance Tele
132.1 m
Detect Distance Wide
47.6 m
Focus
Motorized
Identify Distance Tele
13.2 m
Identify Distance Wide
4.76 m
Mirror
Yes
Observe Distance Tele
52.9 m
Observe Distance Wide
19 m
Recognize Distance Tele
26.4 m
Recognize Distance Wide
9.5 m
Storage
Built-in HDD
No
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
No
Wi-Fi
No
Bnc Output Ports
1
Audio
Built-in Microphone
Yes
Power
Max Power Draw
9.4 W
Power Source
DC
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/25 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.002 lx
Sensor Size
Larger sensor = better low-light performance. Full-frame > APS-C > MFT > 1/2.8".
1/2.8
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1080 (HD 1080)/960 x 480/960 x 576
Supported Video Modes
1080p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
2 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Min Focusing Distance
0.5 m
Detection Distance
132.1 m
Dynamic Range
130 dB
Focal Length
2.7 - 12 mm
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
13.2 m
Field of View (Diagonal)
123 °
Field of View (Horizontal)
102 °
Field of View (Vertical)
53 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.5
Night Vision
Yes
IR Night Vision Range
80 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
4
Observation Distance
52.9 m
Recognition Distance
26.4 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
65 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto
Pan Range
0 - 360 °
Camera Shutter Type
Electronic
Features
Analog Signal Formats
PAL
Auto Focus
Yes
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Gain Control Type
Auto/Manual
Smart Ir
Yes
Physical
Weight
0.550000
Form Factor
Bullet
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling/Wall/Pole
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
White
Height
90.4 mm
Tilt Adjustment
0 - 90 °
Depth
90.4 mm
Width
209.6 mm
Additional
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN, 61000-3-3:2013, EN55024:2010+A1:2015, EN, 55035:2017, EN50130-4:2011+A1:2014, EN 62368-, 1:2014+A11:2017), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Warranty
36
SKU
1451664
EAN
6923172506993
