Special offer

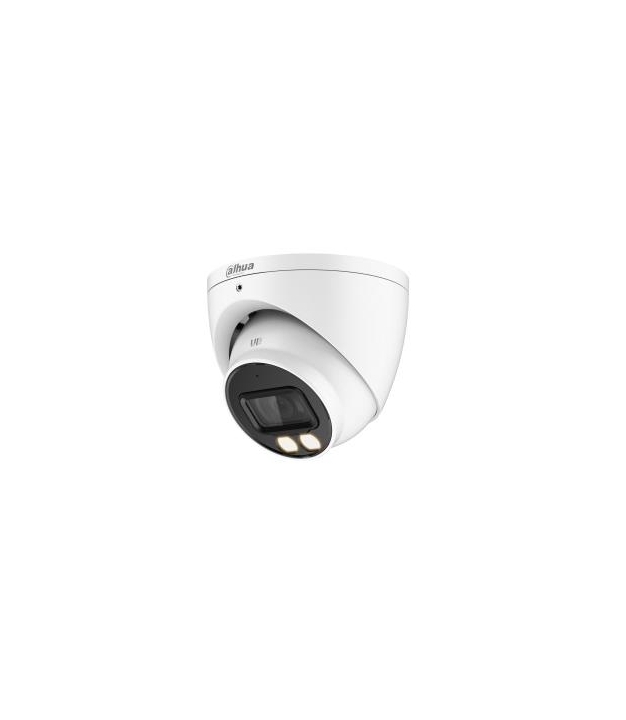

CAMERA HDCVI 2MP EYEBALL/HDW1200T-IL-A-0280B-S6 DAHUA
MPN:
HAC-HDW1200T-IL-A-0280B-S6
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
1920 x 1080 pixels
€94.38
/ incl. VAT
€78.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Lite Series is a great choice for consumers looking for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on
the white light when Perimeter Protection/SMD Plus function of AI XVR
detects a target in the rule area to capture clear, vivid images. When the
target leaves the rule area, the camera automatically switches over from
the white light to the IR light to significantly reduce light pollution.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI
camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua's test laboratory.
- Max. 30 fps@1080p
- 3D NR
- Smart Dual Light
- 40 m illumination distance
- Super Adapt
- Built-in mic
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Specifications
General
Model
HAC-HDW1200T-IL-A-0280B-S6
Type
IP security camera
Angle Rotation
360 °
Built In Light
Yes
CN Code
85258900
Digital Wide Dynamic Range Dwdr
Yes
Fixed Focus
Yes
Mirror
Yes
Number Privacy Masking Areas
8
Storage
Built-in HDD
No
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
No
Wi-Fi
No
Bnc Output Ports
1
Audio
Audio Input Channels
1.0 channels
Built-in Microphone
Yes
Power
Max Power Draw
4.1 W
Power Source
DC
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/30 - 1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR/White
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0 lx
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1080 (HD 1080)/960 x 480/960 x 576
Supported Video Modes
1080p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
2 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Bitrate Control
VBR: variable bitrate (better quality). CBR: constant (predictable bandwidth).
Constant Bit Rate (CBR)
Min Focusing Distance
0.5 m
Detection Distance
41.1 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
4.1 m
Field of View (Diagonal)
129 °
Field of View (Horizontal)
102 °
Field of View (Vertical)
60 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
2
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
Effective Pixels (H×V)
1920 x 1080 pixels
IR LEDs
4
Observation Distance
16.5 m
Recognition Distance
8.3 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
65 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Area white balance/Auto
Pan Range
0 - 360 °
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Features
Protection Features
Dust resistant/Waterproof
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Gain Control Type
Auto
Smart Ir
Yes
Physical
Weight
0.450000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
99.2 mm
Tilt Adjustment
0 - 78 °
Additional
Certifications
CE-LVD: EN 62368-1;, CE-EMC: EN 55032; EN 55035;, FCC: 47 CFR FCC Part 15, Subpart B;, UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Warranty
36
SKU
1425255
EAN
6923172591890
