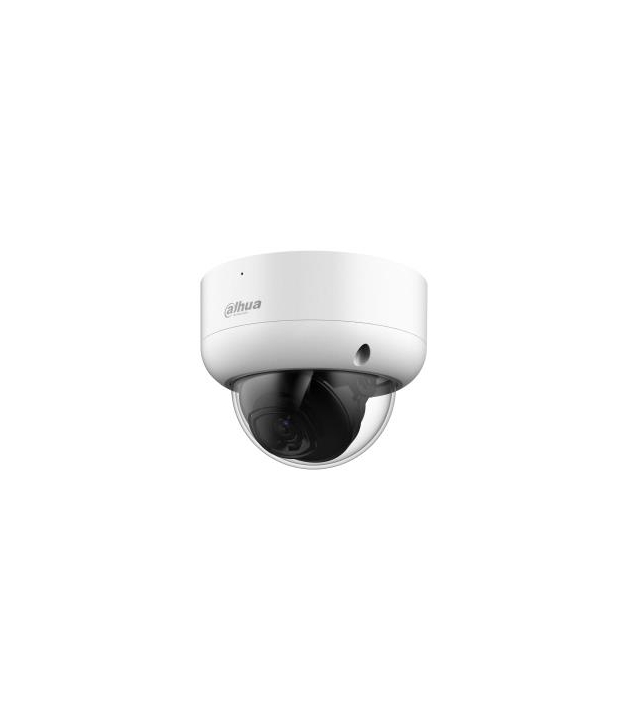

CAMERA HDCVI 5MP DOME/HDBW1500EA-A-0280B-S3DIP DAHUA
MPN:
HAC-HDBW1500EA-A-0280B-S3-DIP
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2880 x 1620 pixels
€76.96
/ incl. VAT
€63.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
6 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Lite Series is a great choice for consumers looking for high-quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full color and starlight, providing various solutions for different scenarios.
Starlight
With its large image sensor and large aperture, the camera delivers high performance and quality even in low-light conditions. The Starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light.
Built-in Mic
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the collected audio information. This is important for video surveillance applications that use audio as supplementary evidence.
Smart IR Illumination
With its IR illumination, the camera provides optimal performance in low-light conditions, ensuring uniform brightness in black-and-white images. Through smart IR technology, it compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure as targets move closer.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects noise and compares sequential frames to reduce it effectively while also saving bandwidth and storage space.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passed rigorous dust and immersion tests. Its enclosure is dust-proof and waterproof and can function normally while immersed in water up to 1 m deep for 30 minutes.
IK10: The enclosure can withstand up to five impacts from a 5 kg hammer falling from a height of 40 cm (20 J impact energy).
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for various outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports four signals (video, audio*, data, and power) transmitted simultaneously over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform actions such as sending control signals and triggering alarms. HDCVI also supports PoC, making installation quick and easy. Audio input is available for select HDCVI camera models./
Starlight
With its large image sensor and large aperture, the camera delivers high performance and quality even in low-light conditions. The Starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light.
Built-in Mic
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the collected audio information. This is important for video surveillance applications that use audio as supplementary evidence.
Smart IR Illumination
With its IR illumination, the camera provides optimal performance in low-light conditions, ensuring uniform brightness in black-and-white images. Through smart IR technology, it compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure as targets move closer.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects noise and compares sequential frames to reduce it effectively while also saving bandwidth and storage space.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passed rigorous dust and immersion tests. Its enclosure is dust-proof and waterproof and can function normally while immersed in water up to 1 m deep for 30 minutes.
IK10: The enclosure can withstand up to five impacts from a 5 kg hammer falling from a height of 40 cm (20 J impact energy).
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for various outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports four signals (video, audio*, data, and power) transmitted simultaneously over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform actions such as sending control signals and triggering alarms. HDCVI also supports PoC, making installation quick and easy. Audio input is available for select HDCVI camera models./
The Lite Series is a great choice for consumers looking for high-quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full color and starlight, providing various solutions for different scenarios.
Starlight
With its large image sensor and large aperture, the camera delivers high performance and quality even in low-light conditions. The Starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light.
Built-in Mic
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the collected audio information. This is important for video surveillance applications that use audio as supplementary evidence.
Smart IR Illumination
With its IR illumination, the camera provides optimal performance in low-light conditions, ensuring uniform brightness in black-and-white images. Through smart IR technology, it compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure as targets move closer.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects noise and compares sequential frames to reduce it effectively while also saving bandwidth and storage space.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passed rigorous dust and immersion tests. Its enclosure is dust-proof and waterproof and can function normally while immersed in water up to 1 m deep for 30 minutes.
IK10: The enclosure can withstand up to five impacts from a 5 kg hammer falling from a height of 40 cm (20 J impact energy).
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for various outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports four signals (video, audio*, data, and power) transmitted simultaneously over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform actions such as sending control signals and triggering alarms. HDCVI also supports PoC, making installation quick and easy. Audio input is available for select HDCVI camera models.
- The parameters and datasheets below can only be applied to 1500-S3 series
- In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version Max. 25 fps@5 MP (16:9 video output)
- Starlight, 3D NR
- 40 m illumination distance
- Built-in MIC
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Specifications
General
Type
IP security camera
Angle Rotation
355 °
Digital Watermark
Yes
Digital Wide Dynamic Range Dwdr
Yes
Fixed Focus
Yes
Focus
Motorized/Manual
Mirror
Yes
Number Privacy Masking Areas
8
Web Based Management
Yes
Storage
Built-in HDD
No
Connectivity
DC-In Jack
Yes
Audio
Built-in Microphone
Yes
Power
Max Power Draw
3.5 W
Power Source
DC
DC Output Voltage
12
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/100000 s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.01 lx
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Detection Distance
59.8 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6 m
Field of View (Diagonal)
134.3 °
Field of View (Horizontal)
113.3 °
Field of View (Vertical)
62.1 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
40 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
3
Observation Distance
23.9 m
Recognition Distance
12 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
65 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Area white balance/Auto
Pan Range
0 - 355 °
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Features
Protection Features
Vandal proof
Alarm Input Output
Yes
Number of Cameras
1
Security Protocols
HTTPS
Motion Detection
Yes
Alarm Input Channels
Dry-contact inputs for external sensors (PIR, door contacts, smoke detectors).
1
Alarm Output Channels
Relay outputs to trigger external devices (sirens, lights, door locks).
1
AI / Smart Features
AI analytics: face recognition, line crossing, intrusion detection, vehicle detection.
Intrusion/Tripwire
Gain Control Type
Auto/Manual
Remote Viewing
Yes
Smart Ir
Yes
Physical
Weight
0.440000
Form Factor
Dome
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
IK Rating
Impact protection rating IK00–IK10. IK10 = withstands 20J impact.
IK10
Mounting Type
Ceiling/wall
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor & outdoor
Colour
White
Height
89.1 mm
Tilt Adjustment
0 - 80 °
Additional
Certifications
CE-LVD: EN 62368-1;, CE-EMC: EN 55032; EN 55035;
Warranty
36
SKU
1462977
EAN
6937552413252
