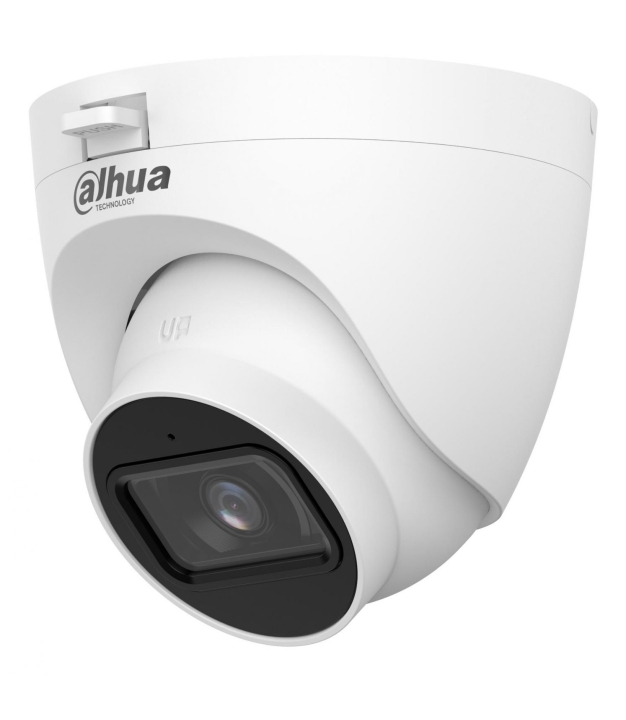

CAMERA HDCVI 5MP EYEBALL/HDW1500TRQA0280BS3DIP DAHUA
MPN:
HAC-HDW1500TRQ-A-0280B-S3-DIP
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2880 x 1620 pixels
€53.72
/ incl. VAT
€44.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Max. 25 fps@5 MP (16:9 video output)
- Starlight, 3D NR
- 25 m illumination distance
- Quick-to-install eyeball saves installation time
- Built-in MIC
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP50, 12 VDC
Specifications
General
Type
CCTV security camera
Angle Rotation
360 °
Certifications
CE
Digital Wide Dynamic Range Dwdr
Yes
Mirror
Yes
Number Privacy Masking Areas
8
Storage
Built-in HDD
No
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
No
Wi-Fi
No
Bnc Output Ports
1
DC-In Jack
Yes
Audio
Built-in Microphone
Yes
Power
Max Power Draw
2.9 W
Power Source
DC
DC Output Voltage
12
Camera
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.001 lx
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Min Focusing Distance
0.8 m
Detection Distance
59.8 m
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
6 m
Field of View (Diagonal)
134.3 °
Field of View (Horizontal)
113.3 °
Field of View (Vertical)
62.1 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1.6
Night Vision
Yes
IR Night Vision Range
25 m
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
2
Observation Distance
23.9 m
Recognition Distance
12 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
65 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Area white balance/Auto
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Fixed Focal Length
2.8 mm
Camera Shutter Type
Electronic
Features
Number of Cameras
1
Gain Control Type
Auto/Manual
Smart Ir
Yes
Physical
Weight
0.170000
Form Factor
Turret
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP50
Mounting Type
Ceiling/Wall/Pole
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Indoor
Colour
White
Height
93 mm
Tilt Adjustment
0 - 78 °
Additional
Warranty
36
SKU
1458738
EAN
6937552413948
