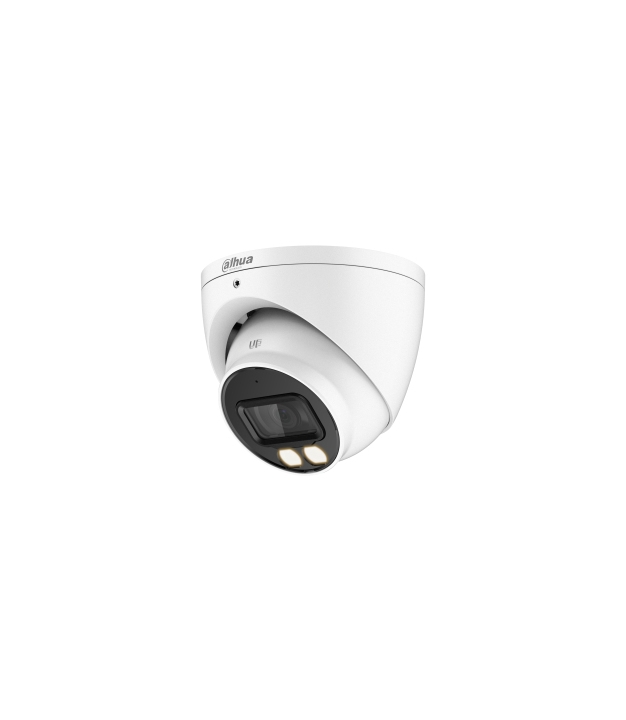

CAMERA HDCVI 5MP EYEBALL/HDW1509T-IL-A-0280B-S2 DAHUA
MPN:
HDW1509T-IL-A-0280B-S2
Brand:
DAHUA
Connection Type:
Wired
Night Vision:
Yes
Resolution:
2880 x 1620 pixels
€205.10
/ incl. VAT
€169.50
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Lite Series is a great choice for consumers looking for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios
Smart Dual Illuminators
With its smart dual illumination mechanism, the camera automatically
turns on the white light when Perimeter Protection/SMD Plus function
of AI XVR detects a target in therule area to capture clear, vivid images.
When the target leaves the rule area, the camera automatically switches
over from the white light to the IR illuminator to significantly reduce light
pollution.
Wide Dynamic Range
With its advanced Wide Dynamic Range technology (WDR), the camera
captures highly detailed images and produces high-definition recordings
in high-contrast lighting conditions, and in scenes with backlighting or
shadows.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the
HDCVI camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua's test laboratory.
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios
Smart Dual Illuminators
With its smart dual illumination mechanism, the camera automatically
turns on the white light when Perimeter Protection/SMD Plus function
of AI XVR detects a target in therule area to capture clear, vivid images.
When the target leaves the rule area, the camera automatically switches
over from the white light to the IR illuminator to significantly reduce light
pollution.
Wide Dynamic Range
With its advanced Wide Dynamic Range technology (WDR), the camera
captures highly detailed images and produces high-definition recordings
in high-contrast lighting conditions, and in scenes with backlighting or
shadows.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the
HDCVI camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua's test laboratory.
Specifications
General
Model
HDW1509T-IL-A-0280B-S2
Type
CCTV security camera
Angle Rotation
360 °
Built In Light
Yes
Digital Zoom
4 x
Mirror
Yes
Fire Detection
Yes
Storage
Built-in HDD
No
Display
Field Of View Fov Angle
131 °
Connectivity
Bluetooth
No
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
No
Wi-Fi
No
Bnc Output Ports
1
Audio
Audio Input Channels
1.0 channels
Built-in Microphone
Yes
Power
Max Power Draw
5.7 W
Power Source
DC
DC Output Voltage
12
Input Voltage
12 V
Camera
Shutter Speed
Exposure time range. Faster shutter reduces motion blur in bright scenes.
1/3 s-1/100000 s s
Frame Rate
Frames per second (fps). 30 fps = standard; 60 fps = smoother video.
30 fps
LED Type
IR
Min. Illumination
Minimum lux for clear image. Lower = better in dark environments. 0 lux = IR only.
0.0001 lx
Progressive Scan
Captures full frames vs interlaced (alternating lines). Reduces motion blur.
Yes
Sensor Type
CMOS: most cameras today. CCD: older, higher quality. BSI: better low-light.
CMOS
Video Resolutions
1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
Supported Video Modes
1080p
Resolution (MP)
Higher megapixels = more detail. 12MP+ is sufficient for most uses.
5 MP
Video Recording
Yes
Wide Dynamic Range (WDR)
Captures detail in both bright and dark areas simultaneously.
Yes
Optical Zoom
Optical zoom uses lens movement (quality preserved). Digital zoom crops (loses quality).
Yes
Backlight Compensation (BLC)
BLC prevents silhouetting when subject is backlit.
Yes
Detection Distance
78 m
Dynamic Range
120 dB
Highlight Compensation (HLC)
HLC reduces overexposed bright spots (headlights, floodlights) in the frame.
Yes
Identification Distance
7.8 m
Field of View (Diagonal)
131 °
Field of View (Horizontal)
111 °
Field of View (Vertical)
57 °
Max Aperture (f-number)
Lower f-number = wider aperture = better low-light performance.
1
Night Vision
Yes
Noise Reduction
Yes
Noise Reduction Technology
3D DNR: better quality, reduces temporal noise. 2D DNR: lower latency.
3D noise reduction
IR LEDs
2
Observation Distance
31.2 m
Recognition Distance
15.6 m
Signal-to-Noise Ratio
Higher SNR (dB) = cleaner image with less grain/noise. 50+ dB is good.
65 dB
White Balance
Corrects colour cast under different lighting. ATW = auto-tracking white balance.
Auto/AWC
PTZ Pan Control
Yes
PTZ Tilt Control
Yes
Pan Range
0 - 360 °
Fixed Focal Length
3.6 mm
Camera Shutter Type
Electronic
Features
Analog Signal Formats
NTSC/PAL
Number of Cameras
1
Privacy Masking
Blocks specific zones from being recorded to protect privacy.
Yes
Gain Control Type
Auto/Manual
Remote Viewing
Yes
Smart Ir
Yes
Physical
Weight
0.490000
Form Factor
Spherical
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP67
Mounting Type
Ceiling
Operating Humidity
0 - 95 %
Installation Type
Ceiling: dome cameras. Wall: bullet/box cameras. Pole: outdoor cameras.
Outdoor
Colour
Black, White
Height
93.6 mm
Tilt Adjustment
0 - 78 °
Additional
Certifications
CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Warranty
36
SKU
1405029
EAN
6923172540553
