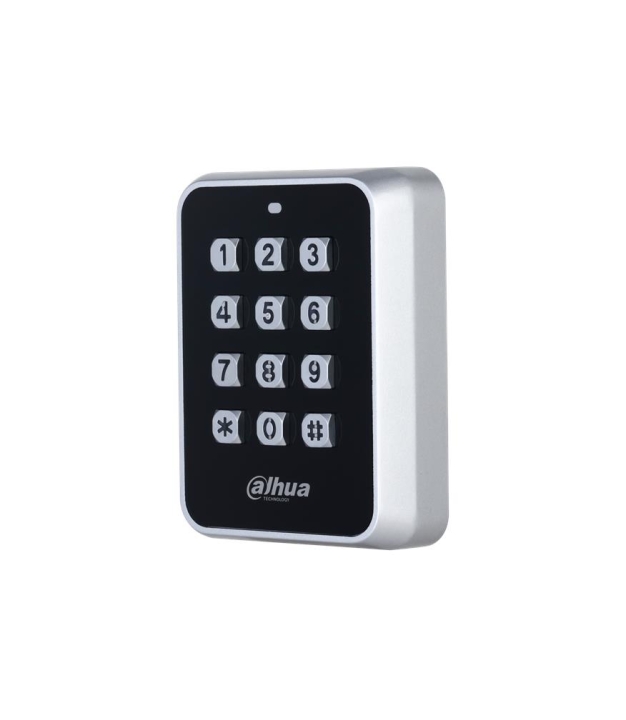

DHI-ASR1101M-V1 Vandal-proof Indoor Password IC Card Reader
> The metal keypad has a backlight and makes a beeping sound each time you press a key on it.
> High-performance 32-bit processor.
> 3 identity verification modes: Card, password, and a combination of card and password.
> Contactless card reading. Supports reading Mifare cards (IC card).
> Works at a frequency of 13.56 MHz.
> RS-485 and Wiegand communication.
> Highly compatible with third-party products, the device supports the W26 and W34 Wiegand interface, with W34 as the default.
> Provides online updates.
> Buzzer and indicator light.
> Lightning-proof, antistatic, and anti-short-circuit design.
> Built-in dongle software ensures long-term operation of the device.
> Tamper alarm.
> Overcurrent and overvoltage protection for all interfaces.
> IK08 rated.
> Operating temperature is –10 °C to +55 °C, and the operating humidity is less than 95%.
> Supports surface mount and flush mount (86 mount box is required).
