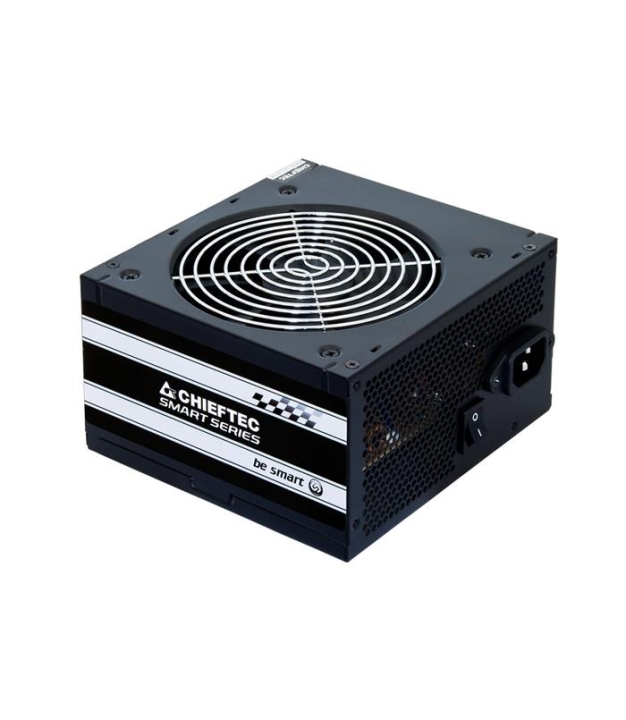

Chieftec Smart GPS-500A8 power supply unit 500 W 20+4 pin ATX ATX Black
MPN:
GPS-500A8
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€49.16
/ incl. VAT
€40.63
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
14 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Specifications
General
Efficiency
80 %
Max Output Current 12v1
24 A
Max Output Current 12v2
21 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
230 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
408 W;3.6 W
3.3V Rail Power
130 W
5V Rail Power
130 W
Max 12V Current
12.5 A;0.3 A
Max 3.3V Current
22 A
Max 5V Current
19 A
Max 5VSB Current
3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
3
PCIe 6+2-pin Connectors
1
Molex Connectors
2
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Total Power Output
500 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
No
Floppy Drive Power Connector
1
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Compatibility
ATX Standard
2.3
Physical
Depth
140 mm
Height
87 mm
Width
150 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
Additional
Warranty
24
SKU
1207534
EAN
4710713239531
