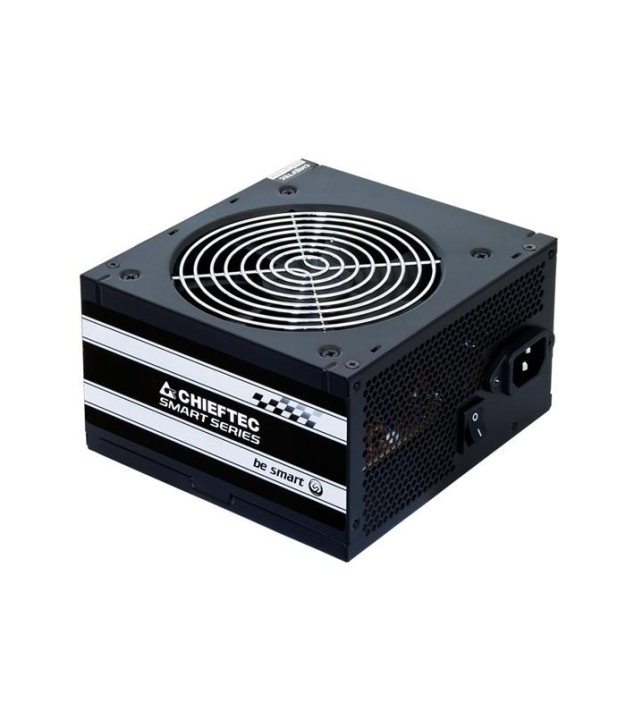

Chieftec GPS-650A8 power supply unit 650 W 20+4 pin ATX PS/2 Black
MPN:
GPS-650A8
Brand:
CHIEFTEC
Cable Management:
Non-Modular
€58.14
/ incl. VAT
€48.05
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
6 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 85%, the GPS-650A8 fulfills the requirement of green power at an attractive price.
Specifications
General
Certifications
CE, CB, EAC, ErP, RoHS, interseroh, TÜV
Efficiency
85 %
Max Output Current 12v1
50 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
220 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
600 W;3.6 W
3.3V Rail Power
120 W
5V Rail Power
120 W
5VSB Rail Power
12.5 W
EPS 8-pin CPU Power
Yes
Input Current
5 A
Max 12V Current
0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
2
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over power/Over voltage/Short circuit/Under voltage
Total Power Output
650 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Bronze
PCIe Power Connector
Yes
Floppy Drive Power Connector
1
Power Factor
0.9
Storage
Floppy Disk Drive Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Supported Motherboard Form Factors
ATX
Physical
Depth
150 mm
Height
87 mm
Width
140 mm
PCIe Cable Length
500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
PS/2
Colour
Black
SATA Power Cable Length
150/500 mm
Additional
Warranty
24
SKU
1207537
EAN
4710713239562
