Chieftec GDP-750C power supply unit 750 W 20+4 pin ATX PS/2 Black
MPN:
GDP-750C
Brand:
CHIEFTEC
Cable Management:
Semi-Modular
€88.08
/ incl. VAT
€72.79
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
50 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

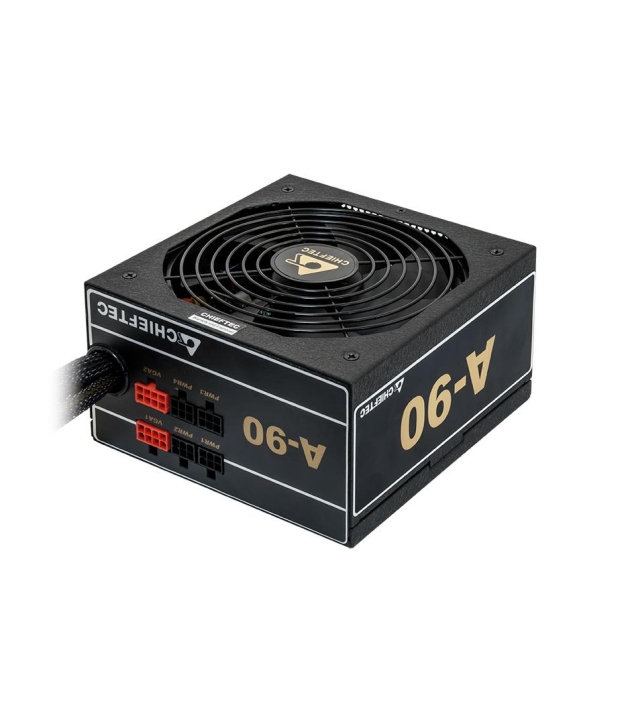

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
Specifications
General
Frequency Tolerance
90 %
HS Code
84733020
Max Output Current 12v1
62 A
Power
Input Frequency
47 - 63 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
744 W
3.3V Rail Power
120 W
5V Rail Power
120 W
5VSB Rail Power
2.5 W
EPS 8-pin CPU Power
Yes
Max 12V Current
0.3 A
Max 3.3V Current
22 A
Max 5V Current
22 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
8
PCIe 6+2-pin Connectors
4
Molex Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Total Power Output
750 W
Floppy Drive Power Connector
1
Power Factor
0.9
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
140 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.3
Physical
Depth
150 mm
Height
87 mm
Width
160 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
PS/2
Colour
Black
Additional
Warranty
24
SKU
1207558
EAN
4710713230842
