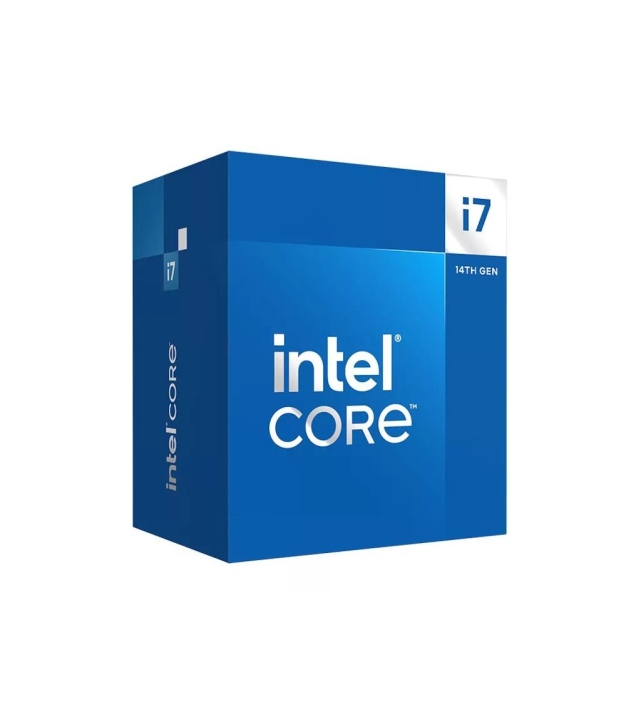

CPU, INTEL, Desktop, Intel Core i7, i7-14700F, Raptor Lake, 2100 MHz, Cores 20, 33MB, Socket LGA1700, 65 Watts, BOX, BX8071514700FSRN3Z

MPN: BX8071514700F S RN3Z Brand: INTEL

Boost Clock Speed: 5.4 GHz

Processor Cores: 20

Processor Family: Intel® Core™ i7

MPN: BX8071514700F S RN3Z Brand: INTEL Boost Clock Speed: 5.4 GHz Processor Cores: 20 Processor Family: Intel® Core™ i7

€498.06 / incl. VAT

€411.62 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Specifications

General

Model Intel Core i7 14700F (BX8071514700F S RN3Z)

Model Number i7-14700F

Commodity Classification Automated Tracking System Ccats 740.17B1

Embedded Options Available No

Execute Disable Bit Yes

HS Code 8542310001

Idle States Yes

Market Segment Desktop, Mobile, or Server . determines platform compatibility. Desktop

Maximum Number Of Dmi Lanes 8

Scalability 1S

Stepping B0

Tjunction 100 °C

Use Conditions PC/Client/Tablet

Processor

Processor Model i7-14700F

Cooler Included Yes

PCIe Lanes Total PCIe lanes the CPU provides to GPU, NVMe, and other devices. 20

Cache Memory Cache memory is the tiny but extremely fast on-chip memory the CPU uses to keep frequently accessed data close to the cores. Larger L2 and L3 caches cut down on slow trips to system RAM, which is especially valuable for gaming, databases and compilation. 33 MB

Cache Type Smart Cache

CPU Generation Newer generation = better performance per watt and more features. Intel® Core™ i7 (14th gen)

CPU Brand Intel

Operating Modes 64-bit

CPU Socket The physical socket on the motherboard (e.g. LGA1700, AM5). Must match. LGA 1700

Processor Threads Threads are the virtual processing lanes the CPU exposes to the operating system. Hyper-Threading / SMT typically doubles thread count vs core count, which improves throughput on parallel workloads like rendering and compilation. Threads do not double sin 28

Instruction Sets AVX 2.0/SSE4.1/SSE4.2

Hyper-Threading Intel technology that runs 2 threads per core, improving multitasking. Yes

L2 Cache 28672 KB

Cpu Configuration Max 1

E-core Base Frequency 1.5 GHz

Efficient Core Boost Frequency 4.2 GHz

Efficiency Cores Efficiency cores (E-cores) are smaller, lower-power CPU cores that handle background tasks (telemetry, sync, web tabs) while the P-cores stay free for the active app. They boost multi-threaded throughput cheaply and extend battery life on notebooks. 12

Enhanced Intel Speedstep Technology Yes

Intel 64 Yes

Intel Aes New Instructions Yes

Intel Boot Guard Yes

Intel Control Flow Enforcement Technology Cet Yes

Intel Deep Learning Boost On Cpu Yes

Intel Gaussian Neural Accelerator 3 0 Yes

Intel Secure Key Yes

Intel Speed Shift Technology Yes

Intel Standard Manageability Ism Yes

Intel Thread Director Yes

Intel Turbo Boost Max Technology 3 0 Yes

Intel Turbo Boost Max Technology 3 0 Frequency 5.4 GHz

Intel Turbo Boost Technology 2.0

Intel Virtualization Technology For Directed I O Vt D Yes

Intel Virtualization Technology Vt X Yes

Intel Volume Management Device Vmd Yes

Intel Vt X With Extended Page Tables Ept Yes

Memory Bandwidth Supported By Processor 89.6 GB/s

P-core Base Frequency 2.1 GHz

Performance Core Boost Frequency 5.3 GHz

Performance Cores Performance cores (P-cores) are the high-power CPU cores used for demanding foreground tasks - games, rendering, single-threaded productivity. They run at the highest clock speeds and consume the most power. P-core count is the main driver of peak single- 8

Processor Ark Id 236854

Base Power Base Power (W, also called PL1) is the sustained power the CPU is rated to draw at base clock. It maps directly to long-term cooling requirements: a 65 W chip fits stock coolers, a 125 W chip needs a tower or AIO cooler. 65 W

Processor Codename Raptor Lake

Processor Package Size 45 x 37.5 mm

Memory

Max RAM (CPU Limit) 192 GB

Memory Channels Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers. Dual-channel

Supported Memory Types DDR4-SDRAM, DDR5-SDRAM

Max Supported RAM 192 GB

Max Memory Bandwidth GB/s of data between CPU and RAM. Higher = better for integrated graphics. 89.6 GB/s

Features

Export Control Classification Number Eccn 5A992C

Mode Based Execute Control Mbe Yes

Power

Max Turbo Power Max Turbo Power (W, also called PL2) is the peak short-burst power draw when the CPU is hitting boost frequencies. It can be 1.5-3x the base power. Adequate VRM cooling on the motherboard and a quality PSU are essential to sustain it. 219 W

Cooling

Thermal Monitoring Technologies Yes

Graphics

Dedicated GPU Separate graphics chip (e.g. NVIDIA RTX, AMD Radeon). Required for gaming, 3D and video editing. No

Discrete GPU Not available

Integrated Graphics Built-in GPU for display output. Not suitable for gaming or 3D workloads. No

Integrated GPU Model Not available

Connectivity

PCIe Version PCIe 5.0: ~64 GB/s per x16 slot. PCIe 4.0: ~32 GB/s. Backwards compatible. 4.0/5.0

Direct Media Interface Dmi Revision 4.0

Pci Express Configurations 1x16+1x4/2x8+1x4

Operating System

Intel Os Guard Yes

Additional

Warranty 24

SKU 1433471

EAN 5032037279260
