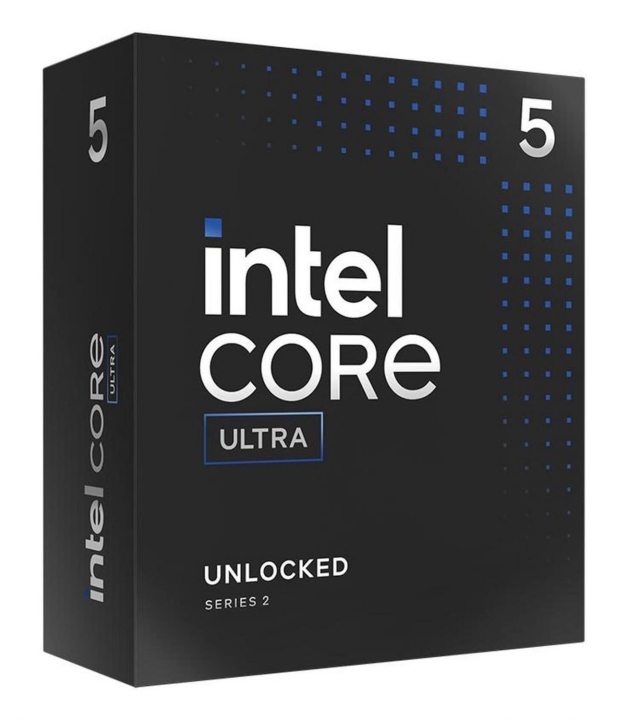

CPU, INTEL, Desktop, Intel Core Ultra, 225F, Arrow Lake, 3300 MHz, Cores 10, Socket LGA1851, 65 Watts, BOX, BX80768225FSRQD2
MPN:
BX80768225F S RQD2
Brand:
INTEL
Boost Clock Speed:
4.9 GHz
Processor Cores:
10
Processor Family:
Intel Core Ultra 5
€261.53
/ incl. VAT
€216.14
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.
Specifications
General
Model Number
225F
Embedded Options Available
No
Execute Disable Bit
Yes
Idle States
Yes
Market Segment
Desktop, Mobile, or Server . determines platform compatibility.
Desktop
Maximum Number Of Dmi Lanes
8
NPU Performance
NPU (Neural Processing Unit): dedicated AI/ML acceleration. TOPS = tera operations per second.
13 TOPs
Scalability
1S
AI Sparsity Support
Hardware support for sparse neural network operations, which can roughly double AI inference throughput on supported models.
Yes
Use Conditions
PC/Client/Tablet
Processor
Processor Model
225F
PCIe Lanes
Total PCIe lanes the CPU provides to GPU, NVMe, and other devices.
24
Cache Memory
Cache memory is the tiny but extremely fast on-chip memory the CPU uses to keep frequently accessed data close to the cores. Larger L2 and L3 caches cut down on slow trips to system RAM, which is especially valuable for gaming, databases and compilation.
20 MB
Cache Type
Smart Cache
CPU Generation
Newer generation = better performance per watt and more features.
Intel Core Ultra (Series 2)
CPU Brand
Intel
Operating Modes
64-bit
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1851 (Socket V1)
Processor Threads
Threads are the virtual processing lanes the CPU exposes to the operating system. Hyper-Threading / SMT typically doubles thread count vs core count, which improves throughput on parallel workloads like rendering and compilation. Threads do not double sin
10
Instruction Sets
AVX 2.0/SSE4.1/SSE4.2
L2 Cache
22528 KB
Ai Software Frameworks Supported By Cpu
DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
E-core Base Frequency
2.7 GHz
Efficient Core Boost Frequency
4.4 GHz
Efficiency Cores
Efficiency cores (E-cores) are smaller, lower-power CPU cores that handle background tasks (telemetry, sync, web tabs) while the P-cores stay free for the active app. They boost multi-threaded throughput cheaply and extend battery life on notebooks.
4
Enhanced Intel Speedstep Technology
Yes
Intel 64
Yes
Intel Aes New Instructions
Yes
Intel Boot Guard
Yes
Intel Control Flow Enforcement Technology Cet
Yes
Intel Deep Learning Boost On Cpu
Yes
Intel Secure Key
Yes
Intel Speed Shift Technology
Yes
Intel Standard Manageability Ism
Yes
Intel Thread Director
Yes
Intel Thunderbolt 4
Thunderbolt 4 is a 40 Gb/s USB-C standard that combines high-speed data, dual 4K (or single 8K) display output and 100 W power delivery in one cable. It is required for daisy-chained eGPUs and the fastest external NVMe enclosures.
Yes
Intel Trusted Execution Technology
Yes
Intel Turbo Boost Technology
2.0
Intel Virtualization Technology For Directed I O Vt D
Yes
Intel Virtualization Technology Vt X
Yes
Intel Volume Management Device Vmd
Yes
Intel Vt X With Extended Page Tables Ept
Yes
Neural Processor (NPU)
Dedicated AI accelerator built into the CPU package. Used by Windows Studio Effects, Copilot+ features and AI inference workloads.
Intel AI Boost
P-core Base Frequency
3.3 GHz
Performance Core Boost Frequency
4.9 GHz
Performance Cores
Performance cores (P-cores) are the high-power CPU cores used for demanding foreground tasks - games, rendering, single-threaded productivity. They run at the highest clock speeds and consume the most power. P-core count is the main driver of peak single-
6
Processor Ark Id
241069
Base Power
Base Power (W, also called PL1) is the sustained power the CPU is rated to draw at base clock. It maps directly to long-term cooling requirements: a 65 W chip fits stock coolers, a 125 W chip needs a tower or AIO cooler.
65 W
Processor Codename
Arrow Lake
Total CPU AI Performance (TOPs)
Maximum AI compute throughput from the CPU expressed in tera-operations per second.
19 TOPs
Memory
Max RAM (CPU Limit)
192 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Supported Memory Speeds
6400 MHz
Supported Memory Types
DDR5-SDRAM
Max Supported RAM
192 GB
Power
Max Turbo Power
Max Turbo Power (W, also called PL2) is the peak short-burst power draw when the CPU is hitting boost frequencies. It can be 1.5-3x the base power. Adequate VRM cooling on the motherboard and a quality PSU are essential to sustain it.
121 W
Features
Mode Based Execute Control Mbe
Yes
Cooling
Thermal Monitoring Technologies
Yes
Software
AI Frameworks (NPU)
AI software frameworks supported by the on-chip Neural Processing Unit (e.g. DirectML, ONNX RT, OpenVINO).
DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Graphics
Dedicated GPU
Separate graphics chip (e.g. NVIDIA RTX, AMD Radeon). Required for gaming, 3D and video editing.
No
Discrete GPU
Not available
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Integrated GPU Model
Not available
Connectivity
PCIe Version
PCIe 5.0: ~64 GB/s per x16 slot. PCIe 4.0: ~32 GB/s. Backwards compatible.
4.0/5.0
Direct Media Interface Dmi Revision
4.0
Operating System
Intel Os Guard
Yes
Windows Studio Effects
Support for Windows Studio Effects (background blur, eye contact, voice focus) accelerated by the NPU.
Yes
Additional
Warranty
24
SKU
1452441
EAN
5032037282383
