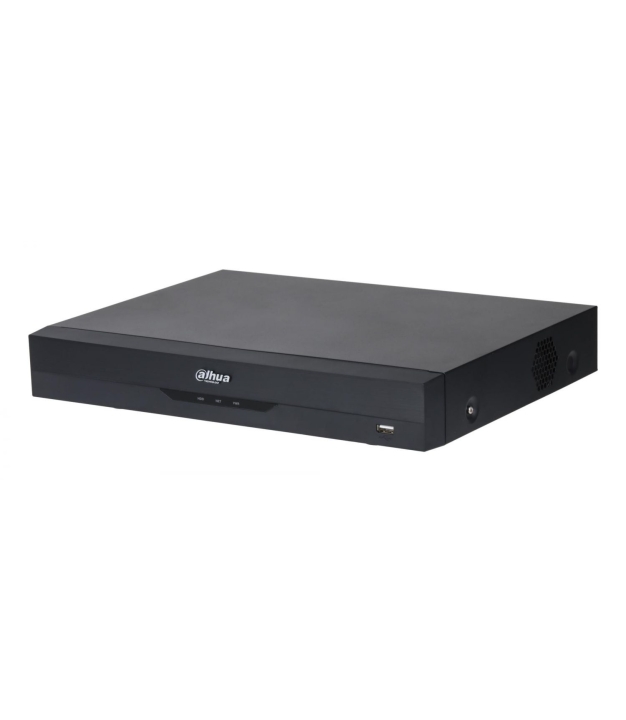

Dahua Technology XVR5116H-4KL-I3/T digital video recorder (DVR) Black
MPN:
XVR5116H-4KL-I3/T
Brand:
DAHUA
€853.78
/ incl. VAT
€705.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 8-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 4-channel face recognition for analog channels which supports face comparison
- 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
Specifications
General
Certifications
CE
Operating Humidity
10 - 90 %
Rack Capacity
1U
Video Input Channels
16 channels
Video Rca Outputs
1
Display
Multi-display Support
Yes
Max Video Resolution
3840 x 2160 pixels
Multi Display Modes
1/16/25/36/4/8/9
Video Resolutions
1280 x 720/1920 x 1080/3840 x 2160 pixels
Storage
Maximum Hdd Capacity
16000 GB
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
HDMI Ports
1
RS-485 Ports
1
USB 2.0 Ports (Rear)
1
VGA Output
1
Bnc Input Ports
16
LAN Speed
Fast Ethernet, Gigabit Ethernet
Graphical User Interface Gui
Yes
USB 3.2 Gen 1 Type-A Ports
1
Audio
Audio Formats
G.711 A-law/G.711u/PCM
Audio Input Channels
16 channels
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
1.0 channels
Power
DC Voltage
12 V
Power Supply Type
DC
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
15 W
Camera
Dual Stream Support
Yes
Features
Backup Function
Yes
Playback Modes
Event/General/Instant/Smart/Tag
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.265/H.265+
Video Loss Detection
Yes
Motion Detection
Yes
Operating System
Operating System
Embedded LINUX
Compatibility
HDD Bays
1
Physical
Depth
257.1 mm
Height
55 mm
Width
325 mm
Weight
1.390000
Colour
Black
Additional
Warranty
36
SKU
1458521
EAN
6937552419834
Networking
Ethernet Data Rates
10/100/1000 Mbit/s
Network Protocols
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, P2P
