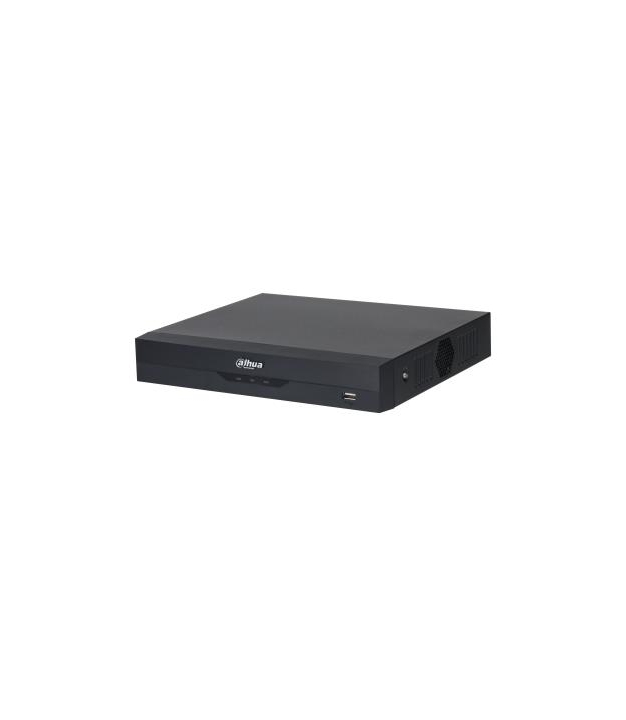

Dahua Technology XVR5104HS-I3/T digital video recorder (DVR) Black
MPN:
XVR5104HS-I3/T
Brand:
DAHUA
€209.09
/ incl. VAT
€172.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
10 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- 4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability
- Max. 6-ch IP Video Input (Up to 6MP)
- 4-ch Two-way Talk
- AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 4-ch SMD, 4-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity
Specifications
General
Model
XVR5104HS-I3/T
Certifications
FCC: Part 15 Subpart B, CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Operating Humidity
10 - 90 %
Rack Capacity
1U
Video Capture Speed
30 fps
Video Input Channels
4 channels
Video Streaming
Yes
Storage
Hdd Interface
SATA
Maximum Hdd Capacity
16000 GB
Display
Max Video Resolution
1920 x 1080 pixels
Playback Resolutions Supported
1920 x 1080, 1280 x 1024, 1280 x 720
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
HDMI Ports
1
RS-485 Ports
1
USB 2.0 Ports (Rear)
2
VGA Output
1
Bnc Input Ports
4
Bnc Output Ports
1
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711 µ-law/G.711 A-law/PCM
Audio Output
1 RCA
Audio System
2-way
Audio Input
1 RCA
Power
DC Voltage
12 V
Power Supply Type
DC
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
4 W
Camera
Channels Quantity
4 channels
Max Frame Rate
60 fps
Dual Stream Support
Yes
Features
Backup Function
Yes
Video Compression
H.265 (HEVC): half the storage of H.264 at same quality. MJPEG: high CPU usage.
H.264/H.264+/H.265/H.265+
Analog Signal Formats
NTSC/PAL
Ptz Control
Yes
Video Loss Detection
Yes
Motion Detection
Yes
Operating System
Operating System
Embedded LINUX
Compatibility
HDD Bays
1
Physical
Depth
237.9 mm
Height
47.6 mm
Width
260 mm
Weight
0.840000
Colour
Black
Additional
Warranty
36
SKU
1451679
EAN
6937552414907
Networking
Network Protocols
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
