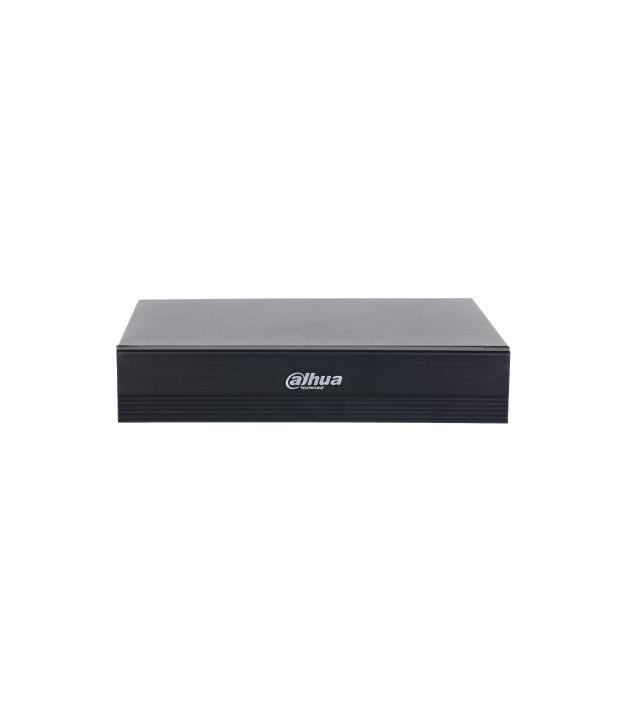

DVR 8CH HDCVI PENTABRID/XVR1B08-I/T DAHUA
MPN:
DH-XVR1B08-I/T
Brand:
DAHUA
€119.06
/ incl. VAT
€98.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
- Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above
- 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
Specifications
General
Model
XVR1B08-I/T
Certifications
CE-LVD: IEC 62368-1:2014, CE-EMC: EN IEC 61000-3-2:2019, EN, 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Internal Drive
Indicates whether the drive is designed for internal installation inside a computer case.
No
Operating Humidity
10 - 90 %
Storage
SSD Interface
SATA
Display
Video Resolutions
1280 x 1024/1280 x 720/1920 x 1080 pixels
Connectivity
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
HDMI Ports
1
USB 2.0 Ports (Rear)
2
VGA Output
1
Bnc Input Ports
8
LAN Speed
Fast Ethernet
Audio
Audio Formats
G.711/G.711u/PCM
Power
Max DC Current
1.5 A
DC Voltage
12 V
Power Supply Type
DC
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
7 W
Camera
Channels Quantity
8 channels
Dual Stream Support
Yes
Operating System
Operating System
Embedded LINUX
Physical
Depth
204.3 mm
Height
41.5 mm
Width
197 mm
Weight
0.570000
Colour
Black
Additional
Warranty
36
SKU
1452561
EAN
6939554956775
Networking
Network Protocols
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
