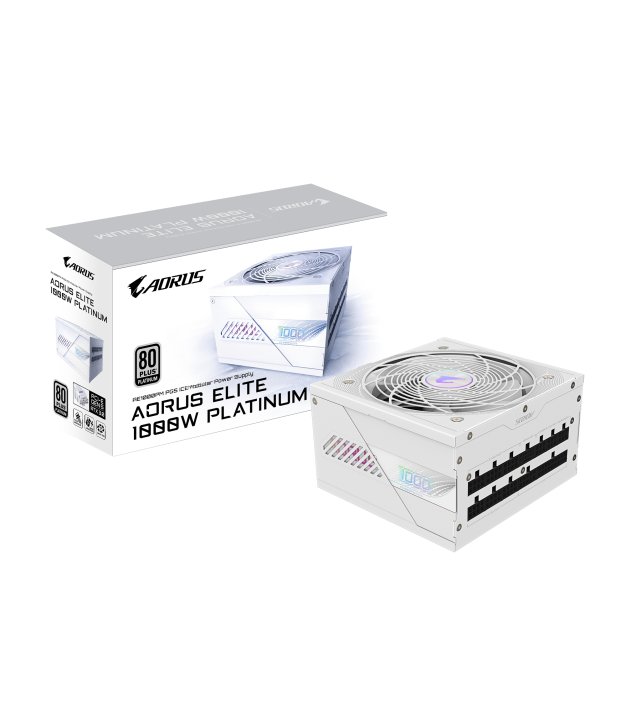

GIGABYTE AORUS ELITE P1000W 80+ Platinm
MPN:
GP-AE1000PM PG5 ICE
Brand:
GIGABYTE
Cable Management:
Fully-Modular
€251.66
/ incl. VAT
€207.98
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Specifications
General
Efficiency
92%
Hold Time
16 ms
Part Number
GP-AE1000PM PG5 ICE
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
999.6 W
3.3V Rail Power
125 W
5V Rail Power
125 W
5VSB Rail Power
15 W
Input Current
15 - 6.5 A
Max 12V Current
83.3 A
Max 3.3V Current
25 A
Max 5V Current
25 A
Max 5VSB Current
3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
6
Molex Connectors
4
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total Power Output
1000 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Platinum
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Floppy Drive Power Connector
2
Power Factor
0.9
Power Good Signal Delay Range
100 - 150 ms
Storage
Floppy Disk Drive Connector
Yes
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
Ball bearing
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
3.1
Physical
Depth
140 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
65 cm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
SKU
47311345
EAN
4719331554651
