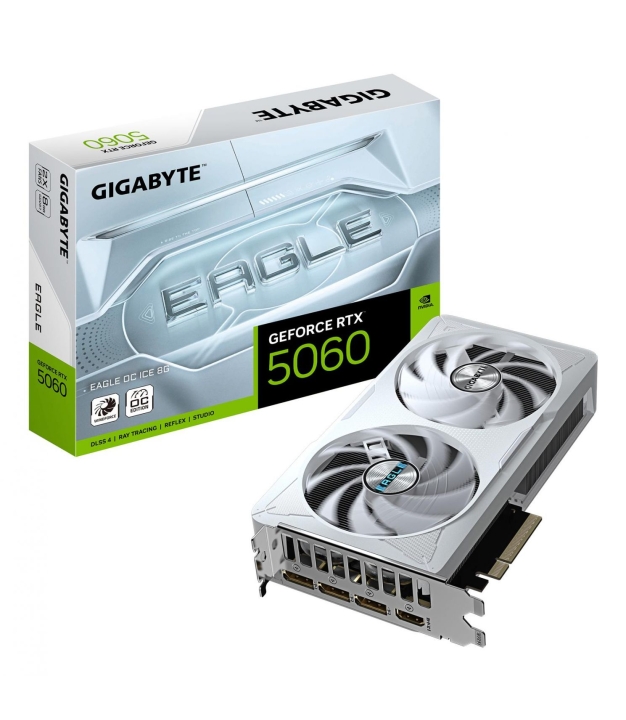

GIGABYTE GeForce RTX5060 EGL OC ICE 8GB
MPN:
GV-N5060EAGLEOC ICE-8GD
Brand:
GIGABYTE
VRAM:
8 GB
VRAM Type:
GDDR7
GPU Model:
GeForce RTX 5060
€577.32
/ incl. VAT
€477.12
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
10 in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8GB GDDR7 3xDP 1xHDMI
Specifications
General
Part Number
GV-N5060EAGLEOC ICE-8GD
Graphics
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
28 Gbit/s
GPU Family
NVIDIA
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
128 bit
CUDA Support
Yes
CUDA Cores (NVIDIA)
CUDA cores are NVIDIA's parallel processing units. More CUDA cores means more pixels, vertices and AI operations are computed simultaneously, which translates directly to higher gaming frame rates and faster GPU-accelerated workloads.
3840
NVIDIA G-Sync
NVIDIA G-Sync is the variable refresh-rate technology built into compatible NVIDIA GPUs. It syncs the monitor's refresh rate to the GPU's actual frame rate, eliminating tearing and stutter. G-Sync Ultimate requires a hardware module in the monitor; G-Sync
Yes
Processor
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
2550 MHz
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
2.1b
DisplayPort Ports
3
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1b
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
450 W
Aux Power Connectors
1x 8-pin
Max CPU TDP Supported
The highest CPU thermal output (in watts) this cooler is rated to handle. Match or exceed the TDP of your CPU.
109 W
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
GIGABYTE WINDFORCE 2X
Cooling Type
Active
Fan Count
2 fan(s)
Features
Factory Overclocked
GPU ships at higher-than-reference clocks out of the box.
Yes
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express 5.0
OpenGL Version
4.6
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Depth
40 mm
Height
120 mm
Length
208 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2
Net Weight
540 g
Form Factor
Full-Height/Half-Length (FH/HL)
Additional
SKU
1439944
EAN
4719331356446
