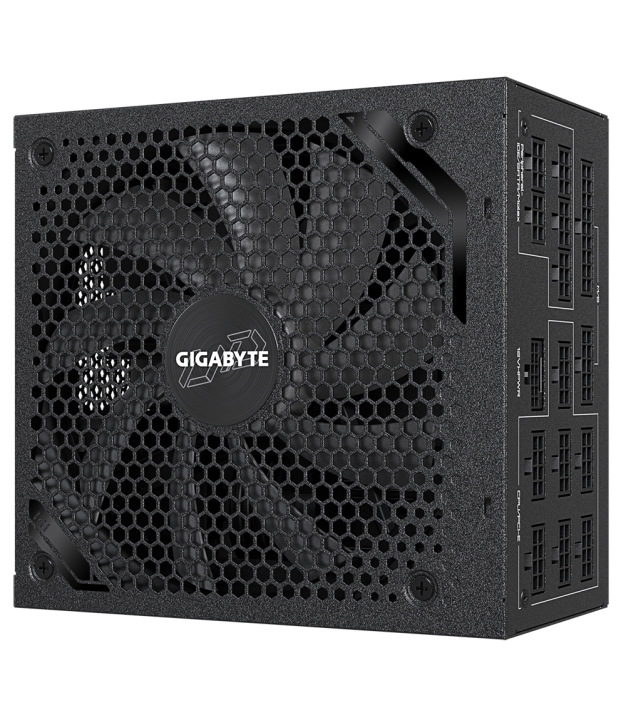

GIGABYTE GP-UD1300GM PG5 1300W 80+ Gold
MPN:
GP-UD1300GM PG5
Brand:
GIGABYTE
Cable Management:
Fully-Modular
€284.83
/ incl. VAT
€235.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ULTRA
DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.
140MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
COMPACT DESIGN
Leveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ULTRA
DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY
JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink and optimized the airflow. The heat dissipation performance is increased, thus prolonging the service life of the components.
140MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 1300W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.
COMPACT DESIGN
Leveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160mm compared to traditional design. It can be easily installed in any chassis without space constraints.
Specifications
General
Certifications
CCC, CE, Federal Communications Commission (FCC), RoHS
Efficiency
90%
Hold Time
16 ms
Maximum Input Current 110v
6 A
Maximum Input Current 220v
12 A
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
40 dB
Part Number
GP-UD1300GM PG5
Power
Input Frequency
50 - 60 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
1300 W
3.3V Rail Power
125 W
5V Rail Power
125 W
5VSB Rail Power
17.5 W
Input Current
12 - 6 A
Max 12V Current
108.3 A
Max 3.3V Current
25 A
Max 5V Current
25 A
Max 5VSB Current
3.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
8
PCIe 6+2-pin Connectors
4
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total Power Output
1300 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
PCIe 16-pin Connector
1
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Features
RGB Lighting
No
Cable Ties Included
Yes
Physical
Depth
160 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
61 cm
PCIe Cable Length
70 cm
Molex Cable Length
200, 600 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
SATA Power Cable Length
150, 600 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
SKU
46326897
EAN
4719331553388
