Special offer

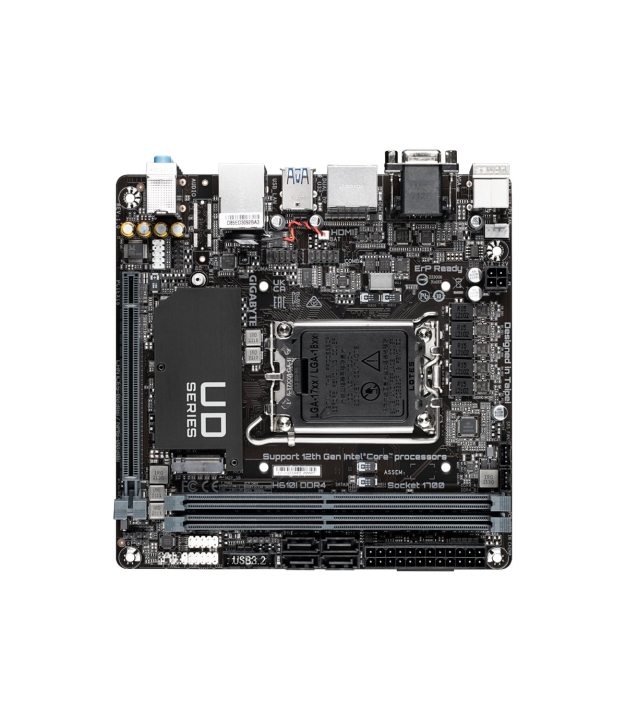

GIGABYTE H610I DDR4 LGA 1700
MPN:
H610I DDR4
Brand:
GIGABYTE
CPU Socket / Platform:
Intel Pentium G, Intel® Core™ i9, Intel® Celeron, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Chipset:
Intel H610 Express
Memory Slot Type:
DIMM
€147.26
/ incl. VAT
€121.70
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
9 in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
GIGABYTE H610I DDR4 LGA 1700 1xHDMI 2xDP 1xD-Sub 4xSATA 6Gb/s
Specifications
General
HS Code
84733020
Part Number
H610I DDR4
Processor
CPU Brand
Intel
Max RAM (CPU Limit)
64 GB
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1700
Display
Supported Displays
3
Memory
Max Supported RAM
64 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
2
Max Memory Speed
3200 MHz
Supported Memory Speeds
2133, 2400, 2666, 2933, 3000, 3200 MHz
Supported Memory Types
DDR4-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
ECC & Non-ECC
Storage
HDD Bays
4
M.2 Slots
1
SATA III Ports
4
Drive Bays
5
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
SATA Ports (Total)
4
Connectivity
USB Connector Type
USB Type-A
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.2
DisplayPort Ports
2
LAN Speed
Gigabit Ethernet
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.0
Headphone Outputs
3
Microphone Input
Yes
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
4
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
2
PCIe x16 Slots
1
PS/2 Ports
1
VGA Ports
1
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
12V Power Connector
ATX 12V connector supplying power to the CPU voltage regulator.
Yes
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
2
Features
Clear CMOS Jumper
Yes
System Health Monitoring
Fan, Temperature, Voltage
ARGB/RGB Header
Yes
Serial (COM) Headers
1
Compatibility
ACPI Version
5.0
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
4096 x 2304 pixels
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1700
SMBIOS Version
2.7
Windows Support
Windows 10 x64, Windows 11 x64
Physical
Depth
170 mm
Height
35 mm
Width
170 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
mini ITX
Chassis Intrusion Header
Yes
Additional
Country of Origin
China
SKU
4433048
EAN
4719331834562
