Special offer

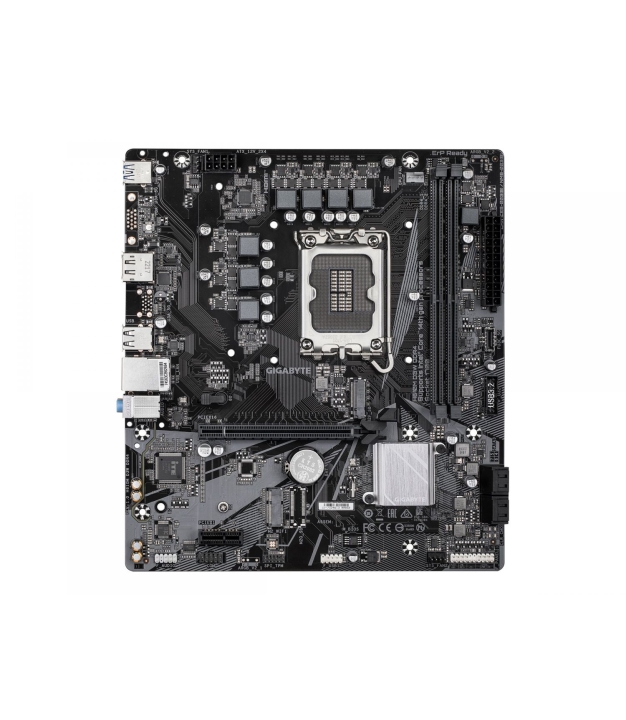

GIGABYTE H610M D3W DDR4
MPN:
H610M D3W DDR4
Brand:
GIGABYTE
CPU Socket / Platform:
Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Celeron, Intel® Pentium®
Chipset:
Intel H610
Memory Slot Type:
DIMM
€106.13
/ incl. VAT
€87.71
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
13 in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
GIGABYTE H610M D3W DDR4
Specifications
General
Part Number
H610M D3W DDR4
Processor
CPU Brand
Intel
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1700
Memory
Max Supported RAM
64 GB
Max RAM per Slot
32 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
2
Max Memory Speed
3200 MHz
Supported Memory Speeds
2133, 2400, 2666, 2933, 3000, 3200 MHz
Supported Memory Types
DDR4-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
ECC & Non-ECC
Storage
HDD Bays
4
M.2 Slots
1
SATA III Ports
4
Drive Bays
5
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
M.2 Slot 1: PCIe Gen
3.0
M.2 Slot 1: Key Size
2280
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.2
DisplayPort Ports
1
LAN Speed
Gigabit Ethernet
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Microphone Input
Yes
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
1
USB 2.0 Ports (Rear)
4
USB 3.2 Gen 1 Headers
2
USB 3.2 Gen 1 Type-A Ports
1
Line In
Yes
Pci Express X1 Gen 3 X Slots
1
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
EPS Power Connectors
1
Power Source
ATX
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
2
CPU Fan Headers
1
Features
Clear CMOS Jumper
Yes
System Health Monitoring
Fan, Temperature, Voltage, Water cooling
Serial (COM) Headers
1
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8111H
Screws Included
Yes
Compatibility
ACPI Version
5.0
BIOS Memory
128 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1700
SMBIOS Version
2.7
Windows Support
Windows 10, Windows 11
Physical
Depth
220 mm
Height
35 mm
Width
244 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
micro ATX
Additional
Country of Origin
China
SKU
47336344
