GIGABYTE Radeon RX 9060 XT Gaming 8GB
MPN:
GV-R9060XTGAMING OC-8GD
Brand:
GIGABYTE
VRAM:
8 GB
VRAM Type:
GDDR6
GPU Model:
Radeon RX 9060 XT
€586.05
/ incl. VAT
€484.34
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

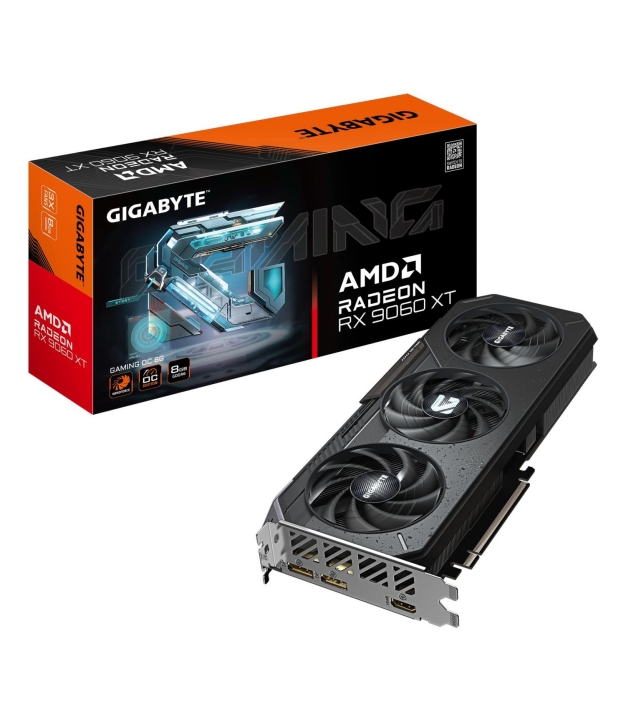

GIGABYTE Radeon RX 9060 XT Gaming 8GB
Specifications
General
Part Number
GV-R9060XTGAMING OC-8GD
Graphics
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
20 Gbit/s
GPU Family
AMD
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
128 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
3320 MHz
Stream Processors
Stream processors are AMD's parallel shading units, the equivalent of NVIDIA's CUDA cores. More stream processors increase the amount of pixel and vertex work the GPU can do per clock cycle, which raises gaming frame rates and rendering throughput.
2048
CUDA Support
No
Processor
Memory Speed
Memory speed (MT/s or MHz) is how many transfers per second the RAM can do. Higher memory speed reduces the wait for data and noticeably boosts performance on Ryzen CPUs and integrated graphics. DDR5-5600 is the current entry; DDR5-6400+ benefits enthusia
20000 MHz
Processor Boost Clock Speed Oc Mode
2780 MHz
Connectivity
DisplayPort Ports
2
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1b
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
450 W
Aux Power Connectors
1x 8-pin
Max CPU TDP Supported
The highest CPU thermal output (in watts) this cooler is rated to handle. Match or exceed the TDP of your CPU.
167 W
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
GIGABYTE WINDFORCE 3X
Cooling Type
Active
Fan Count
3 fan(s)
Features
Lighting Colour
Multi
Factory Overclocked
GPU ships at higher-than-reference clocks out of the box.
Yes
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express x16 5.0
OpenGL Version
4.6
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Depth
40 mm
Height
118 mm
Length
281 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2
Net Weight
840 g
Form Factor
Full-Height/Full-Length (FH/FL)
Additional
SKU
48039911
EAN
4719331356231
