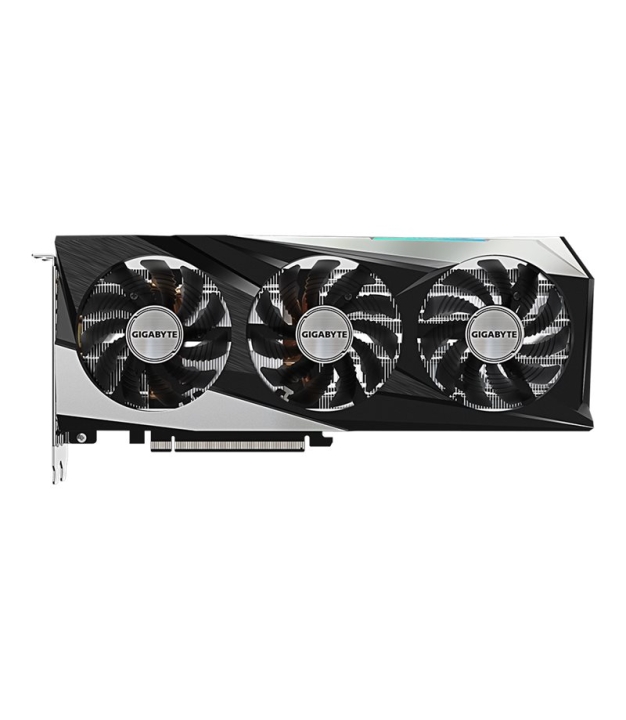

GIGABYTE Radeon RX7600 GAMING OC 8GB

MPN: GV-R76GAMING OC-8GD Brand: GIGABYTE

VRAM: 8 GB

VRAM Type: GDDR6

GPU Model: Radeon RX 7600

MPN: GV-R76GAMING OC-8GD Brand: GIGABYTE VRAM: 8 GB VRAM Type: GDDR6 GPU Model: Radeon RX 7600

€306.78 / incl. VAT

€253.54 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Return Policy

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

GIGABYTE Radeon RX7600 GAMING OC 8GB GDDR6 2xHDMI 2xDP

Specifications

General

Quick Install Guide Yes

Part Number GV-R76GAMING OC-8GD

Graphics

Adaptive Sync Variable refresh-rate technology (FreeSync / G-Sync Compatible) syncs the monitor refresh rate to the GPU's actual frame rate. The result is no tearing and no stutter when frame rate dips below the monitor's max refresh. Requires a compatible monitor conn Yes

Memory Bandwidth Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better 18 Gbit/s

GPU Family AMD

Max Simultaneous Displays The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C. 4

Resolution Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso 7680 x 4320 pixels

Memory Bus Width Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit 128 bit

GPU Boost Clock GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter 2755 MHz

Stream Processors Stream processors are AMD's parallel shading units, the equivalent of NVIDIA's CUDA cores. More stream processors increase the amount of pixel and vertex work the GPU can do per clock cycle, which raises gaming frame rates and rendering throughput. 2048

CUDA Support No

Processor

Processor Boost Clock Speed Oc Mode 2355 MHz

Base Clock Speed Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu 2355 MHz

Connectivity

DisplayPort Version DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation. 1.4a

DisplayPort Ports 2

Dual-Link DVI Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200. No

HDMI Ports 2

HDMI Version HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1. 2.1a

USB Type-C Ports 1

Power

Recommended PSU The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH 550 W

Aux Power Connectors 1x 8-pin

Cooling

Cooling Technology Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling. GIGABYTE WINDFORCE 3X

Cooling Type Active

Fan Count 3 fan(s)

Features

Lighting Colour Multi

Compatibility

DirectX Version DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games. 12 Ultimate

Bus Interface PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0). PCI Express 4.0

OpenGL Version 4.6

Windows Support Windows 10 x64, Windows 11 x64

Physical

Depth 50 mm

Height 115 mm

Length 287 mm

Form Factor Full-Height/Full-Length (FH/FL)

Bracket Height Full-Height (FH)

Additional

SKU 46340549

EAN 4719331313425
