Special offer

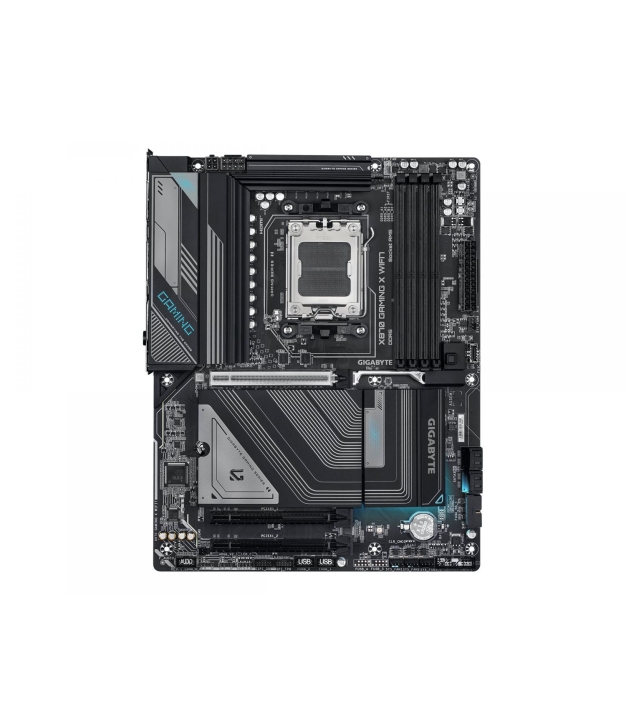

GIGABYTE X870 GAMING X WIFI7 AM5 ATX MB
MPN:
X870 GAMING X WIFI7
Brand:
GIGABYTE
CPU Socket / Platform:
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset:
AMD X870
Memory Slot Type:
DIMM
€273.13
/ incl. VAT
€225.73
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
GIGABYTE X870 GAMING X WIFI7 AM5 ATX MB
Specifications
General
Part Number
X870 GAMING X WIFI7
Processor
CPU Brand
AMD
Max RAM (CPU Limit)
256 GB
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM5
Memory
Max Supported RAM
256 GB
Max RAM per Slot
64 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
8200 MHz
Supported Memory Speeds
4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200 MHz
Supported Memory Types
DDR5-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Storage
HDD Bays
7
M.2 Slots
3
SATA III Ports
4
Drive Bays
7
RAID Levels
0, 1, 10
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
M.2 Slot 1: PCIe Gen
5.0
M.2 Slot 1: Key Size
25110
M.2 Slot 2: PCIe Gen
4.0
M.2 Slot 2: Key Size
25110
M.2 Slot 3: PCIe Gen
4.0
M.2 Slot 3: Key Size
25110
Graphics
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Connectivity
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.4
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 7 (802.11be)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
Wi-Fi 7 (802.11be)
Antenna Included
Yes
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
LAN Speed
2.5 Gigabit Ethernet
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Headphone Outputs
1
Microphone Input
Yes
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
4
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
2
USB 3.2 Gen 2 Type-A Ports
1
USB 3.2 Gen 2×2 Headers
1
Wi-Fi Antenna Jack
2
WLAN Chip
MediaTek MT7925
PCIe 3.0 x16 Slots
2
PCIe x4 Slots
2
USB4 Gen 2x2 Ports
2
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
EPS Power Connectors
1
Molex Connectors
1
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
4
CPU Fan Headers
2
Water Pump Headers
1
Features
Clear CMOS Button
Physical button to reset BIOS settings without opening the case.
Yes
Clear CMOS Jumper
Yes
ARGB/RGB Headers
4
System Health Monitoring
Fan, Temperature, Voltage
ARGB/RGB Header
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8125
Screws Included
Yes
Compatibility
ACPI Version
5.0
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
Socket AM5
SMBIOS Version
2.7
Windows Support
Windows 11 x64
Physical
Depth
244 mm
Height
35 mm
Width
305 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Additional
Country of Origin
China
SKU
1432889
EAN
4719331865368
