Special offer
Out of Stock

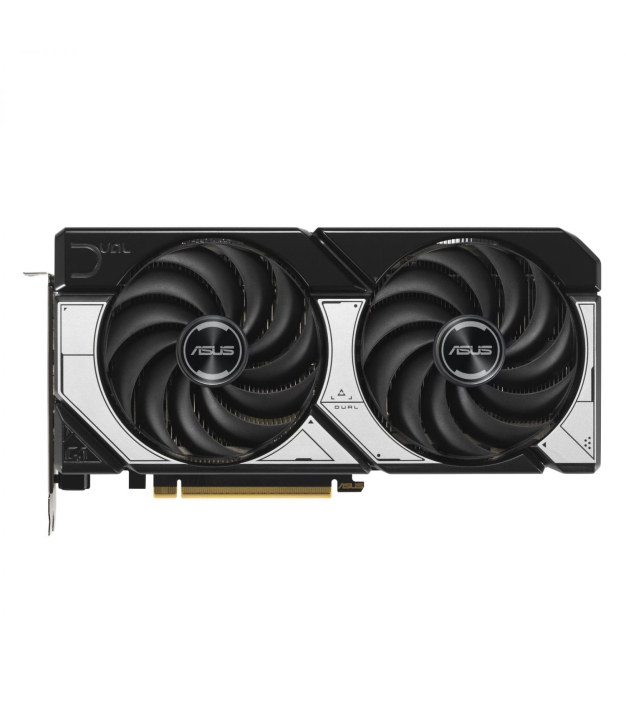

Graphics Card, ASUS, NVIDIA GeForce RTX 5070, 12 GB, GDDR7, 192 bit, PCIE 5.0 16x, Dual Slot Fansink, 1xHDMI, 3xDisplayPort, DUAL-RTX5070-O12G
€1,259.45
/ incl. VAT
€1,040.87
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Specifications
General
Model
DUAL-RTX5070-O12G
Graphics
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
28 Gbit/s
GPU Family
NVIDIA
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
192 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
2542 MHz
CUDA Support
Yes
CUDA Cores (NVIDIA)
CUDA cores are NVIDIA's parallel processing units. More CUDA cores means more pixels, vertices and AI operations are computed simultaneously, which translates directly to higher gaming frame rates and faster GPU-accelerated workloads.
6144
NPU Performance
NPU (Neural Processing Unit): dedicated AI/ML acceleration. TOPS = tera operations per second.
988 TOPs
NVIDIA G-Sync
NVIDIA G-Sync is the variable refresh-rate technology built into compatible NVIDIA GPUs. It syncs the monitor's refresh rate to the GPU's actual frame rate, eliminating tearing and stutter. G-Sync Ultimate requires a hardware module in the monitor; G-Sync
Yes
OC Mode Clock
Factory overclock (OC) clock speed (MHz) is the boost frequency reached when the card runs in its bundled overclock profile. Cards labelled 'OC Edition' ship with this profile enabled out of the box for a small free performance bump over the reference des
2572 MHz
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
2.1b
DisplayPort Ports
3
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
1
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDCP Version
2.3
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1b
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
750 W
Aux Power Connectors
1x 16-pin
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
ASUS Axial-tech
Cooling Type
Active
Fan Count
2 fan(s)
Features
SFF Ready
SFF (Small Form Factor) compatible; fits in compact PC cases.
Yes
VR Ready
Certified for use with VR headsets (Oculus, Valve Index, etc.).
Yes
Compatibility
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express 5.0
OpenGL Version
4.6
Windows Support
Yes
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Weight
0.855000
Depth
50.6 mm
Height
126 mm
Length
249 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2.53
Colour
Multicolour
Net Weight
0.5 kg
Form Factor
Full-Height/Half-Length (FH/HL)
Additional
Warranty
36
SKU
1440232
EAN
4711636046213
