Special offer
Out of Stock

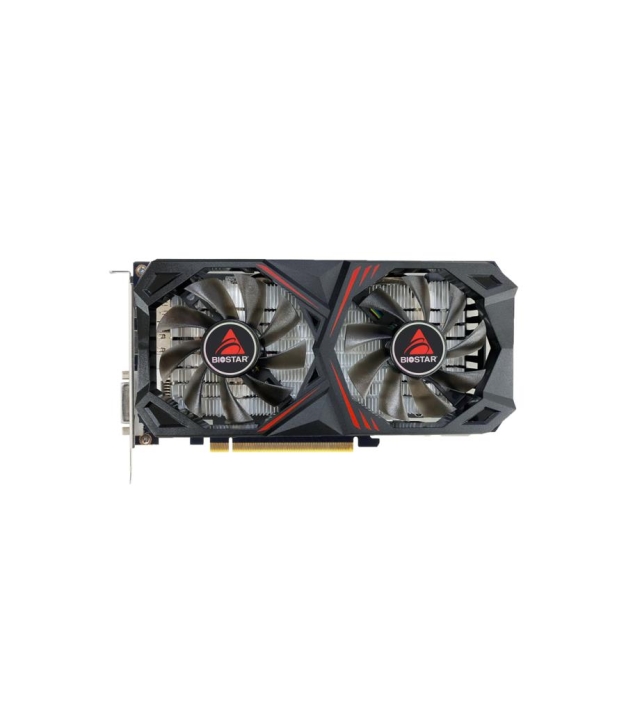

Graphics Card, BIOSTAR, NVIDIA GeForce RTX 2060 SUPER, 8 GB, GDDR6, 256 bit, PCIE 3.0 16x, GPU 1470 MHz, Dual Slot Fansink, 1xDVI-D, 1xHDMI, 1xDisplayPort, VN2066RF82
MPN:
VN2066RF82
Brand:
BIOSTAR
VRAM:
8 GB
VRAM Type:
GDDR6
GPU Model:
GeForce RTX 2060 SUPER
€405.62
/ incl. VAT
€335.22
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- NVIDIA GeForce RTX2060 SUPER GPU
- 8GB GDDR6, 256bit, super speed memory interface
- NVIDIA super 2176 CUDA processing
- DVI/HDMI/DP output support
- DisplayPort 1.4a support
- PCI Express 3.0 x16 bus interface
- Support NVIDIA Ansel Technology
- Complete DirectX 12 API, Vulkan API, OpenGL 4.6 support
- Support NVIDIA PhyX and CUDA Technology
Specifications
General
Model
VN2066RF82
Physx
Yes
Quick Install Guide
Yes
Graphics
GPU Family
NVIDIA
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
256 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
1750 MHz
CUDA Support
Yes
CUDA Cores (NVIDIA)
CUDA cores are NVIDIA's parallel processing units. More CUDA cores means more pixels, vertices and AI operations are computed simultaneously, which translates directly to higher gaming frame rates and faster GPU-accelerated workloads.
2176
NVIDIA G-Sync
NVIDIA G-Sync is the variable refresh-rate technology built into compatible NVIDIA GPUs. It syncs the monitor's refresh rate to the GPU's actual frame rate, eliminating tearing and stutter. G-Sync Ultimate requires a hardware module in the monitor; G-Sync
Yes
Nvidia Ansel
Yes
Processor
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
1470 MHz
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4a
DisplayPort Ports
1
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
1
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDCP Version
2.2
DVI-D Ports
1
Memory
Max Memory Bandwidth
GB/s of data between CPU and RAM. Higher = better for integrated graphics.
14 GB/s
Cooling
Cooling Type
Active
Fan Count
2 fan(s)
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12 Ultimate
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express 3.0
Linux Support
Yes
OpenGL Version
4.6
Windows Support
Windows 10
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Colour
Black
Net Weight
0.8 kg
Additional
Warranty
24
SKU
1406909
EAN
4712960686717
