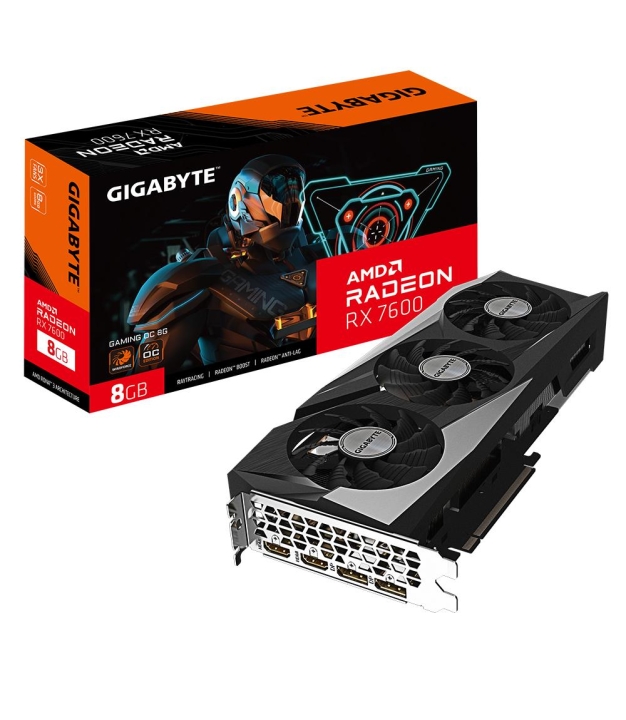

Graphics Card, GIGABYTE, AMD Radeon RX 7600, 8 GB, GDDR6, 128 bit, PCIE 4.0 16x, 2xHDMI, 2xDisplayPort, GV-R76GAMINGOC-8GD1.1
MPN:
GV-R76GAMING OC-8GD 1.1
Brand:
GIGABYTE
VRAM:
8 GB
VRAM Type:
GDDR6
GPU Model:
Radeon RX 7600
€491.96
/ incl. VAT
€406.58
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Specifications
General
Model
GV-R76GAMING OC-8GD 1.1
Quick Install Guide
Yes
Firestream
Yes
Graphics
Adaptive Sync
Variable refresh-rate technology (FreeSync / G-Sync Compatible) syncs the monitor refresh rate to the GPU's actual frame rate. The result is no tearing and no stutter when frame rate dips below the monitor's max refresh. Requires a compatible monitor conn
Yes
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
18 Gbit/s
GPU Family
AMD
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
128 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
2755 MHz;2355 MHz
Stream Processors
Stream processors are AMD's parallel shading units, the equivalent of NVIDIA's CUDA cores. More stream processors increase the amount of pixel and vertex work the GPU can do per clock cycle, which raises gaming frame rates and rendering throughput.
2048
CUDA Support
No
Processor
Processor Boost Clock Speed Oc Mode
2355 MHz
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
2355 MHz
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4a
DisplayPort Ports
2
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
2
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1a
USB Type-C Ports
1
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
550 W
Aux Power Connectors
1x 8-pin
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
GIGABYTE WINDFORCE 3X
Cooling Type
Active
Fan Count
3 fan(s)
Features
RGB Lighting
Yes
Lighting Colour
Multi
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12 Ultimate
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express 4.0
OpenGL Version
4.6
Windows Support
Windows 10 x64/Windows 11 x64
Physical
Depth
50 mm
Height
115 mm
Length
287 mm
Colour
Black
Net Weight
0.8 kg
Form Factor
Full-Height/Full-Length (FH/FL)
Bracket Height
Full-Height (FH)
Additional
Warranty
36
SKU
1434223
EAN
4719331313425
