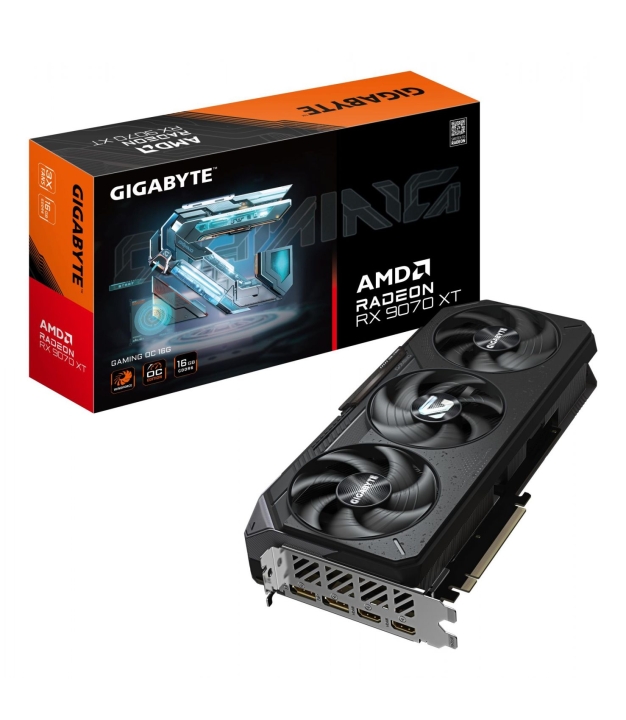

GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD
MPN:
GV-R9070XTGAMING OC-16GD 1.0
Brand:
GIGABYTE
VRAM:
16 GB
VRAM Type:
GDDR6
GPU Model:
Radeon RX 9070 XT
€1,099.73
/ incl. VAT
€908.87
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
Specifications
General
Model
GV-R9070XTGAMING OC-16GD
Graphics
GPU Family
AMD
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
256 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
3060 MHz
Stream Processors
Stream processors are AMD's parallel shading units, the equivalent of NVIDIA's CUDA cores. More stream processors increase the amount of pixel and vertex work the GPU can do per clock cycle, which raises gaming frame rates and rendering throughput.
4096
CUDA Support
No
Processor
Memory Speed
Memory speed (MT/s or MHz) is how many transfers per second the RAM can do. Higher memory speed reduces the wait for data and noticeably boosts performance on Ryzen CPUs and integrated graphics. DDR5-5600 is the current entry; DDR5-6400+ benefits enthusia
20000 MHz
Connectivity
DisplayPort Ports
2
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
2
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1b
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
850 W
Aux Power Connectors
3x 8-pin
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
GIGABYTE WINDFORCE 3X
Cooling Type
Active
Fan Count
3 fan(s)
Features
RGB Lighting
Yes
Lighting Colour
Multi
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express 5.0
OpenGL Version
4.6
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Weight
1.260000
Depth
56 mm
Height
132 mm
Length
288 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2.7
Colour
Black
Net Weight
0.7 kg
Form Factor
Full-Height/Full-Length (FH/FL)
Additional
Warranty
36;3 year(s)
SKU
47762705
EAN
4719331355524
