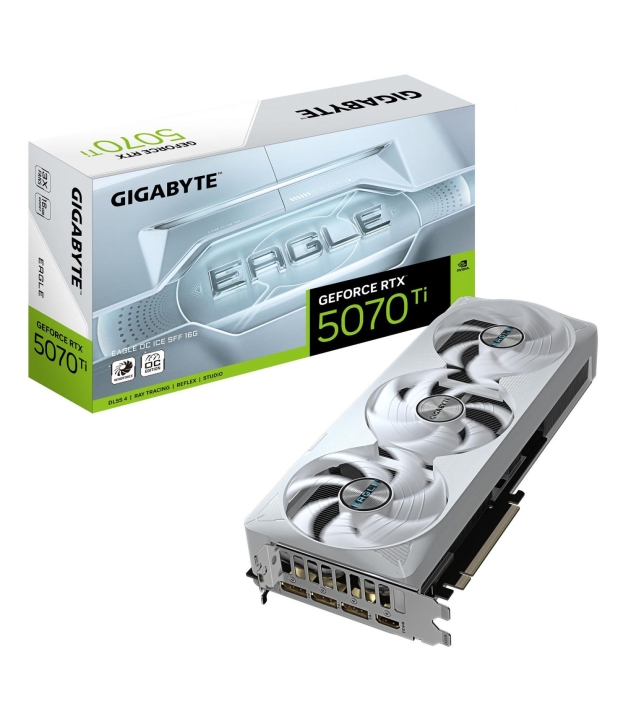

GIGABYTE GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2542 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TEAGLEOC ICE-16GD
MPN:
GV-N507TEAGLEOC ICE-16GD 1.0
Brand:
GIGABYTE
VRAM:
16 GB
VRAM Type:
GDDR7
GPU Model:
GeForce RTX 5070 Ti
€1,881.07
/ incl. VAT
€1,554.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
Specifications
General
Model
GV-N507TEAGLEOC ICE-16GD
Graphics
GPU Family
NVIDIA
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
4
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
256 bit
CUDA Support
Yes
CUDA Cores (NVIDIA)
CUDA cores are NVIDIA's parallel processing units. More CUDA cores means more pixels, vertices and AI operations are computed simultaneously, which translates directly to higher gaming frame rates and faster GPU-accelerated workloads.
8960
NVIDIA G-Sync
NVIDIA G-Sync is the variable refresh-rate technology built into compatible NVIDIA GPUs. It syncs the monitor's refresh rate to the GPU's actual frame rate, eliminating tearing and stutter. G-Sync Ultimate requires a hardware module in the monitor; G-Sync
Yes
Processor
Memory Speed
Memory speed (MT/s or MHz) is how many transfers per second the RAM can do. Higher memory speed reduces the wait for data and noticeably boosts performance on Ryzen CPUs and integrated graphics. DDR5-5600 is the current entry; DDR5-6400+ benefits enthusia
30000 MHz
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
2542 MHz
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
2.1a
DisplayPort Ports
3
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1b
Memory
Max Memory Bandwidth
GB/s of data between CPU and RAM. Higher = better for integrated graphics.
28 GB/s
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
750 W
Aux Power Connectors
1x 16-pin
Max CPU TDP Supported
The highest CPU thermal output (in watts) this cooler is rated to handle. Match or exceed the TDP of your CPU.
300 W
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
GIGABYTE WINDFORCE 3X
Cooling Type
Active
Fan Count
3 fan(s)
Features
RGB Lighting
Yes
Factory Overclocked
GPU ships at higher-than-reference clocks out of the box.
Yes
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express x16 5.0
OpenGL Version
4.6
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Physical
Weight
2.000000
Depth
50 mm
Height
126 mm
Length
304 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2
Colour
White
Net Weight
1 kg
Form Factor
Full-Height/Full-Length (FH/FL)
Additional
Warranty
36;3 year(s)
SKU
1434458
EAN
4719331355869
