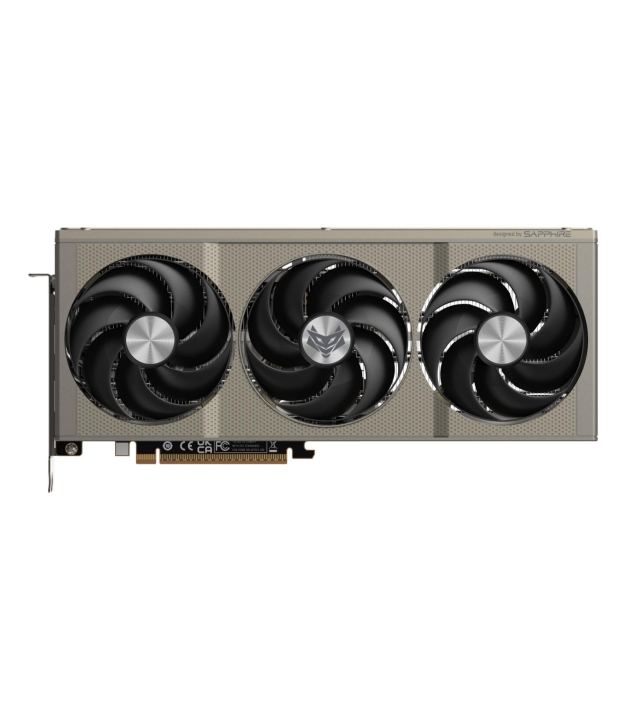

Graphics Card, SAPPHIRE, AMD Radeon RX 9060 XT, 16 GB, GDDR6, 128 bit, PCIE 5.0 16x, Triple slot Fansink, 11350-01-20G
MPN:
11350-01-20G
Brand:
SAPPHIRE
VRAM:
16 GB
VRAM Type:
GDDR6
GPU Model:
Radeon RX 9060 XT
€762.84
/ incl. VAT
€630.45
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Specifications
General
Model
11350-01-20G
Graphics
AI Accelerators
AI accelerators are dedicated tensor / matrix units on the GPU for neural network inference. They power DLSS, FSR Frame Generation, AI upscaling and on-device generative AI tools, separately from the CUDA / stream cores.
64
Adaptive Sync
Variable refresh-rate technology (FreeSync / G-Sync Compatible) syncs the monitor refresh rate to the GPU's actual frame rate. The result is no tearing and no stutter when frame rate dips below the monitor's max refresh. Requires a compatible monitor conn
Yes
Compute Units (AMD)
AMD compute units bundle 64 stream processors plus texture and ray tracing hardware. The compute unit count is the headline number for comparing modern AMD GPUs: more units means proportionally more shading and ray tracing throughput.
32
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
20 Gbit/s
GPU Family
AMD
Max Simultaneous Displays
The maximum number of monitors the card can drive at once, summed across all its outputs. Modern consumer GPUs typically support 3-4 simultaneous displays, workstation cards 4-8. The limit applies whether displays connect by HDMI, DisplayPort or USB-C.
3
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
7680 x 4320 pixels
Memory Bus Width
Memory bus width (bits) is how many bits of VRAM the GPU can transfer per clock cycle. A wider bus combined with faster memory raises overall memory bandwidth, which prevents the GPU cores from starving at high resolutions. 128-bit is entry-level, 256-bit
128 bit
GPU Boost Clock
GPU boost clock (MHz) is the highest frequency the graphics processor reaches under load. It directly drives how fast frames are rendered in games and 3D applications. Higher boost clock means a faster card, although memory bandwidth and core count matter
3320 MHz;2780 MHz
Ray Accelerators (AMD)
Ray accelerators are AMD's dedicated ray tracing hardware, one per compute unit. They handle ray-triangle intersection tests for hardware-accelerated reflections, shadows and global illumination. More accelerators raise ray tracing frame rates.
32
Stream Processors
Stream processors are AMD's parallel shading units, the equivalent of NVIDIA's CUDA cores. More stream processors increase the amount of pixel and vertex work the GPU can do per clock cycle, which raises gaming frame rates and rendering throughput.
2048
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
2.1a
DisplayPort Ports
1
Dual-Link DVI
Dual-Link DVI (Digital Visual Interface) supports up to 2560x1600. Single-Link DVI is limited to 1920x1200.
No
HDMI Ports
2
Power
Recommended PSU
The minimum PSU wattage the GPU vendor recommends for a typical system that uses this card. Build in extra headroom (around 100-150 W) above this number if the rest of the build is power-hungry, and pick a PSU with the right PCIe connectors (8-pin or 12VH
450 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
182 W
Aux Power Connectors
1x 8-pin
Cooling
Cooling Technology
Air: traditional heatsink+fan. Liquid: water block+radiator for quieter, better cooling.
Sapphire Tri-X
Cooling Type
Active
Fan Count
3 fan(s)
Compatibility
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Bus Interface
PCI Express slot version and lane count required on the motherboard (e.g. PCIe x16 5.0).
PCI Express x16 5.0
Linux Support
Yes
OpenGL Version
4.6
Windows Support
Windows 10 x64/Windows 11 x64
Physical
Depth
131 mm
Height
55 mm
Length
300 mm
Slot Width
How many PCIe slot bays the card occupies in the case.
2
Colour
Grey
Net Weight
0.5 kg
Additional
Warranty
36
SKU
1444655
EAN
4895106296619
