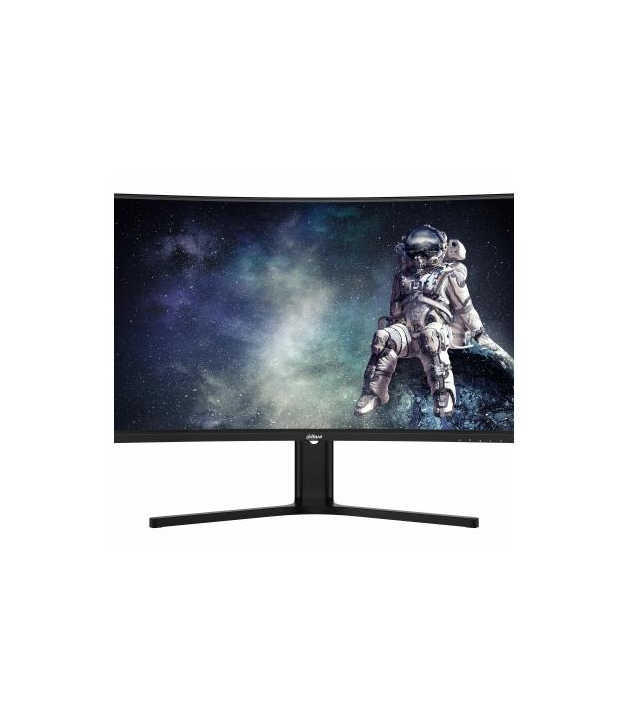

LCD Monitor, DAHUA, 31.5 , 2560 x 1440 pixels, Quad HD, Native aspect ratio 16:9, LCD, Curved, DHI-LM32-E330CA
MPN:
DHI-LM32-E330CA
Brand:
DAHUA
Screen Size:
80 cm (31.5")
Resolution:
2560 x 1440 pixels
Refresh Rate:
180 Hz
€207.64
/ incl. VAT
€171.60
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
7 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- R1500 curved screen makes the vision more shocking
- 180 Hz high refresh rate and 1ms fast response time to seize the game and improve the odds of winning
- Adaptive sync technology reduces image quality loss and improves visual fluency
- Wide color gamut, 85% NTSC. It meets the designer's demand of image texture
- 1 ms fast response time with no image blurring or ghosting
- The angle can be adjusted to meet different needs
Specifications
General
Model Name
LM32-E330CA
Market Segment
Gaming
EPREL Registration No.
EU product database registration number for energy efficiency compliance.
2383606
Data Sheet
https://eprel.ec.europa.eu/api/product/2383606/fiches?language=EN
Certifications
CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Haze Rate
40 %
Input Current
3.42 A
Operating Humidity
10 - 85 %
Surface Hardness
3H
Display
Energy Consumption HDR (kWh/1000h)
42.2 kWh
Energy Efficiency Class (HDR)
G
Contrast Ratio
Static contrast ratio measures how much brighter pure white is than pure black on the panel. Higher contrast means deeper blacks and more punch. Typical IPS panels reach 1000:1, VA panels 3000:1, OLED panels effectively infinite contrast.
3000:1
Colour Depth
8 bit
Panel Type
Panel type sets the colour, contrast and viewing-angle character of the monitor. IPS = wide viewing angles, accurate colour, moderate contrast; VA = high contrast and deep blacks, narrower angles; TN = fastest response but limited angles; OLED = perfect b
VA
Screen Shape
Curved
Adaptive Sync
Variable refresh-rate technology (FreeSync / G-Sync Compatible) syncs the monitor refresh rate to the GPU's actual frame rate. The result is no tearing and no stutter when frame rate dips below the monitor's max refresh. Requires a compatible monitor conn
No
Built-in Webcam
No
Colour Space
sRGB: standard for web/office. DCI-P3: cinema/photo editing. Adobe RGB: pro photo.
NTSC
Typical Brightness
300 cd/m²
Screen Size (cm)
80 cm
Display Technology
IPS: wide angles. VA: high contrast. OLED: perfect blacks. TN: fast response.
LCD
Flicker-Free
Reduces eye strain by eliminating backlight flicker at all brightness levels.
Yes
Resolution Class
FHD=1920×1080, QHD=2560×1440, 4K=3840×2160, OLED refers to panel type.
Quad HD
HDR Support
High Dynamic Range . wider brightness and colour range for more realistic content.
Yes
HDR Standard
HDR10: basic. HDR10+/Dolby Vision: dynamic per-scene metadata for better results.
High Dynamic Range 10 (HDR10)
Backlight
Edge-lit: thinner, less uniform. Direct-lit/Full-array: brighter, local dimming.
Yes
Low Blue Light
Hardware filter for blue light to reduce eye strain during long sessions.
Yes
Aspect Ratio
16:9 = standard widescreen. 16:10 = more vertical space. 21:9 = ultrawide.
16:9
NVIDIA G-Sync
NVIDIA G-Sync is the variable refresh-rate technology built into compatible NVIDIA GPUs. It syncs the monitor's refresh rate to the GPU's actual frame rate, eliminating tearing and stutter. G-Sync Ultimate requires a hardware module in the monitor; G-Sync
No
Pixel Pitch
0.2724 x 0.2724 mm
Touchscreen
No
Adaptive Sync (VRR)
Variable Refresh Rate eliminates tearing. Works with both AMD and NVIDIA GPUs.
Yes
Viewable Width
697.344 mm
Viewable Height
392.256 mm
Horizontal Viewing Angle
IPS panels typically 178°. Narrower angles (TN) cause colour shifts from the side.
178 °
Vertical Viewing Angle
178 °
Automatic Brightness Control
No
Backlight Type
Edge LED
Bottom Bezel Width
17.2 mm
Side Bezel Width
3.8 mm
Top Bezel Width
3.8 mm
Frameless Design
No
Front Bezel Colour
Black
LED Indicators
Status
Ntsc Coverage Typical
85 %
Pixel Density
PPI (pixels per inch). Higher = sharper image. 220+ PPI is Retina-quality.
93.2 ppi
Response Time Mprt
1 ms
Screen Curvature Rating
1500R
Connectivity
Bluetooth
No
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
DisplayPort Ports
2
HDMI
Yes
HDMI Ports
2
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.0
Headphone Output
Yes
Built-in USB Hub
No
Wi-Fi
No
Audio
Built-in Speakers
No
Compatibility
Supported Video Modes
1440p
Power
Energy Class
EU energy label A–G. A is most efficient.
F
Energy Consumption SDR (kWh/1000h)
32 kWh
Energy Efficiency Class (SDR)
F
Ac Adapter Output Voltage
19 V
Power Consumption (Off)
0.3 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
46.5 W
Standby Power
0.5 W
Max Power Draw
72 W
Power Supply Type
External
Graphics
Video Resolutions
2560 x 1440
Physical
Max Height Adjustment
100 mm
Depth (with stand)
242.8 mm
Depth (without stand)
118.3 mm
Stand Colour
Black
Height Adjustment
Yes
Height (with stand)
553 mm
Height (without stand)
422.4 mm
Mounting Interface
100 x 100 mm
Colour
Black
Net Weight
7 kg
Stand Included
Yes
Swivel Angle
How far left/right the monitor can rotate on its stand.
-35 - 35 °
Swivel Adjustment
Yes
Tilt Adjustment
Yes
Tilt Adjustment
-5 - 15 °
VESA Mounting
VESA hole pattern (e.g. 100×100 mm) for monitor arms and wall mounts.
Yes
Wall Mountable
Yes
Weight (without stand)
7000 g
Width (with stand)
717.7 mm
Width (without stand)
717.7 mm
Detachable Stand
Yes
Illuminated Stand
No
Additional
Energy Efficiency Scale
A to G
EPREL Version
1
Warranty
36
SKU
1451899
EAN
6937552412705
