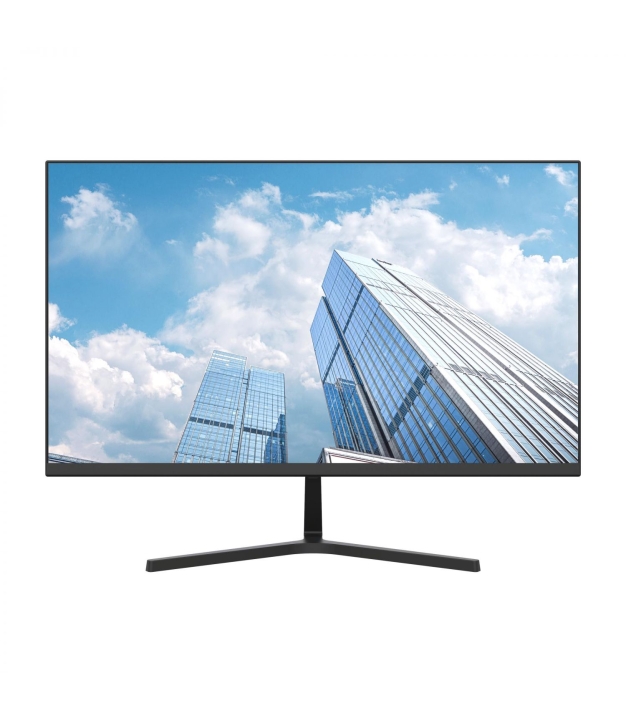

LCD Monitor, DAHUA, DHI-LM24-B201S, 23.8, Business, Panel IPS, 1920x1080, 16:9, 100Hz, 4 ms, Speakers, Colour Black, LM24-B201S
MPN:
DHI-LM24-B201S
Brand:
DAHUA
Screen Size:
60.5 cm (23.8")
Resolution:
1920 x 1080 pixels
Refresh Rate:
100 Hz
€112.53
/ incl. VAT
€93.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Light and cost-effective plastic housing
- Ultra-narrow bezel , elegant appearance, Metal base
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- High fidelity digital processing for a brilliant and vivid video
- Support multiple signal inputs such as HDMI, VGA
- Physical button control mode
- Low energy consumption, long service life
- Anti-blue light design,eye-protective
Specifications
General
Model Name
DHI-LM24-B201S
Market Segment
Business
EPREL Registration No.
EU product database registration number for energy efficiency compliance.
1538753
Data Sheet
https://eprel.ec.europa.eu/api/product/1538753/fiches?language=EN
Certifications
CE
European Product Registry For Energy Labelling Eprel Code
1538753
Model
DHI-LM24-B201S
Operating Humidity
10 - 85 %
Display
Contrast Ratio
Static contrast ratio measures how much brighter pure white is than pure black on the panel. Higher contrast means deeper blacks and more punch. Typical IPS panels reach 1000:1, VA panels 3000:1, OLED panels effectively infinite contrast.
1000:1
Colour Depth
Typical: 16M (8-bit) or 1B (10-bit). More colours = smoother gradients.
16.7 million colours
Colour Depth
8 bit
Panel Type
Panel type sets the colour, contrast and viewing-angle character of the monitor. IPS = wide viewing angles, accurate colour, moderate contrast; VA = high contrast and deep blacks, narrower angles; TN = fastest response but limited angles; OLED = perfect b
IPS
Screen Shape
Flat
Built-in Webcam
No
Typical Brightness
250 cd/m²
Display Technology
IPS: wide angles. VA: high contrast. OLED: perfect blacks. TN: fast response.
LED
Resolution Class
FHD=1920×1080, QHD=2560×1440, 4K=3840×2160, OLED refers to panel type.
Full HD
Aspect Ratio
16:9 = standard widescreen. 16:10 = more vertical space. 21:9 = ultrawide.
16:9
Transfer Time
Pixel response time (ms) is how long a pixel needs to change colour. Lower numbers cut motion blur and ghosting in fast scenes. 1-5 ms is fine for gaming; 5-10 ms is acceptable for productivity. Manufacturers usually quote the best-case GtG number; real-w
4 ms
Touchscreen
No
Horizontal Viewing Angle
IPS panels typically 178°. Narrower angles (TN) cause colour shifts from the side.
178 °
Vertical Viewing Angle
178 °
Backlight Type
LED
Bottom Bezel Width
15.8 mm
Side Bezel Width
3.1 mm
Top Bezel Width
3.1 mm
On Screen Display Osd
Yes
Connectivity
HDMI
Yes
HDMI Ports
1
Headphone Output
No
Built-in USB Hub
No
DC-In Jack
Yes
VGA Ports
1
Audio
Built-in Speakers
No
Power
Energy Class
EU energy label A–G. A is most efficient.
E
Energy Consumption SDR (kWh/1000h)
17 kWh
Energy Efficiency Class (SDR)
E
Ac Adapter Output Voltage
12 V
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
25 W
Standby Power
0.5 W
Power Supply Type
External
Graphics
Video Resolutions
1920 x 1080 (HD 1080)
Physical
Depth (without stand)
48.5 mm
Stand Colour
Black
Height Adjustment
No
Height (without stand)
320.4 mm
Mounting Interface
75 x 75 mm
Colour
Black
Net Weight
2.82 kg
Stand Included
Yes
VESA Mounting
VESA hole pattern (e.g. 100×100 mm) for monitor arms and wall mounts.
Yes
Wall Mountable
Yes
Weight (without stand)
2820 g
Width (without stand)
539.2 mm
Detachable Stand
Yes
Additional
Energy Efficiency Scale
A to G
EPREL Version
1
Warranty
36
SKU
1419181
EAN
6923172544988
CN Code
85285210
