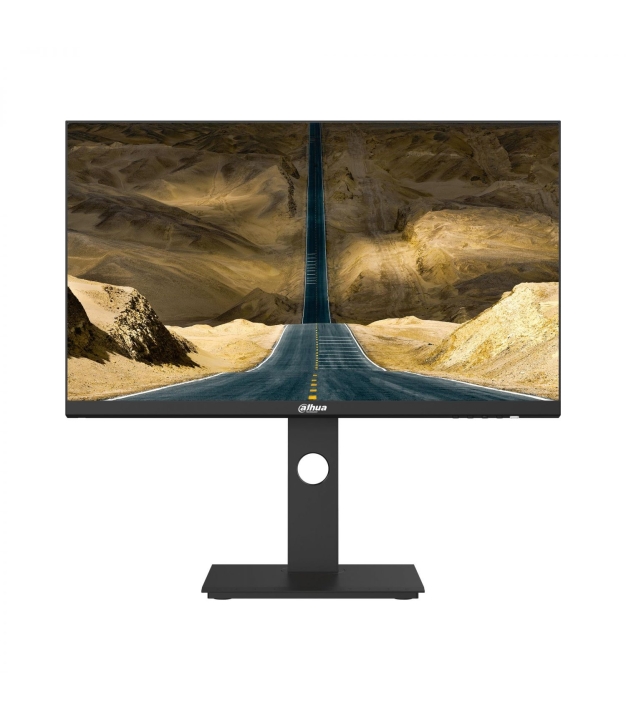

Dahua Technology LM24-P301A computer monitor 60.5 cm (23.8") 2560 x 1440 pixels Quad HD LED Black
MPN:
DHI-LM24-P301A
Brand:
DAHUA
Screen Size:
60.5 cm (23.8")
Resolution:
2560 x 1440 pixels
Refresh Rate:
75 Hz
€166.98
/ incl. VAT
€138.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- The 2560*1440 resolution produces clearer and more vivid pictures
- IPS panel for wide viewing angles with 3-sided frameless design
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- Wide color gamut：99% sRGB, 120% NTSC, 98% DCI-P3
- Rich interfaces, 65W type-C can support reverse charging
- 6ms fast response time with no image blurring or ghosting
- Supporting PIP/PBP to display the screens of two devices on the display simultaneously
- The angle can be adjusted to meet different needs
Specifications
General
Model Name
DHI-LM24-P301A
Market Segment
Business
EPREL Registration No.
EU product database registration number for energy efficiency compliance.
1363937
Data Sheet
https://eprel.ec.europa.eu/api/product/1363937/fiches?language=EN
Adobe Rgb Coverage
93 %
European Product Registry For Energy Labelling Eprel Code
1363937
Input Current
2 A
Model
DHI-LM24-P301A
Operating Humidity
10 - 85 %
Display
Contrast Ratio
Static contrast ratio measures how much brighter pure white is than pure black on the panel. Higher contrast means deeper blacks and more punch. Typical IPS panels reach 1000:1, VA panels 3000:1, OLED panels effectively infinite contrast.
1000:1
Panel Type
Panel type sets the colour, contrast and viewing-angle character of the monitor. IPS = wide viewing angles, accurate colour, moderate contrast; VA = high contrast and deep blacks, narrower angles; TN = fastest response but limited angles; OLED = perfect b
IPS
Screen Shape
Flat
Built-in Webcam
No
Colour Space
sRGB: standard for web/office. DCI-P3: cinema/photo editing. Adobe RGB: pro photo.
DCI-P3
Typical Brightness
320 cd/m²
Display Technology
IPS: wide angles. VA: high contrast. OLED: perfect blacks. TN: fast response.
LED
Resolution Class
FHD=1920×1080, QHD=2560×1440, 4K=3840×2160, OLED refers to panel type.
Quad HD
Aspect Ratio
16:9 = standard widescreen. 16:10 = more vertical space. 21:9 = ultrawide.
16:9
Transfer Time
Pixel response time (ms) is how long a pixel needs to change colour. Lower numbers cut motion blur and ghosting in fast scenes. 1-5 ms is fine for gaming; 5-10 ms is acceptable for productivity. Manufacturers usually quote the best-case GtG number; real-w
6 ms
sRGB Coverage
Standard colour space for web and office use. 100% sRGB is the baseline target.
99 %
Touchscreen
No
Horizontal Viewing Angle
IPS panels typically 178°. Narrower angles (TN) cause colour shifts from the side.
178 °
Vertical Viewing Angle
178 °
Colour Gamut
Percentage of a colour space the display can reproduce. Higher = more vivid colours.
98 %
Aspect Ratio
16:9: widescreen. 16:10: taller for documents. 21:9: ultrawide. 32:9: super-ultrawide.
16:9
Backlight Type
Edge LED
Ntsc Coverage Typical
102 %
On Screen Display Osd
Yes
Picture In Picture
Yes
Connectivity
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
DisplayPort Ports
1
HDMI
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Headphone Output
No
Built-in USB Hub
Yes
Hdmi Cable Length
1.5 m
Usb Type C Downstream Ports Quantity
1
Audio
Audio Output
Yes
Built-in Speakers
No
Power
Energy Class
EU energy label A–G. A is most efficient.
F
Energy Consumption SDR (kWh/1000h)
20 kWh
Energy Efficiency Class (SDR)
F
AC In
Yes
USB Power Delivery
Allows charging via USB-C. PD wattage determines charging speed.
Yes
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
35 W
USB-C Charging Power
Maximum wattage the dock can deliver to the connected laptop over USB-C. 100 W suits most laptops; 140 W is needed for high-power gaming or workstation laptops.
65 W
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Standby Power
0.5 W
Max Power Draw
130 W
Power Supply Type
Internal
Graphics
Video Resolutions
2560 x 1440
Physical
Max Height Adjustment
125 mm
Depth (without stand)
53.25 mm
Stand Colour
Black
Height Adjustment
Yes
Height (without stand)
324.46 mm
Mounting Interface
75 x 75 mm
Pivot (Portrait Mode)
Allows rotating the monitor 90° for portrait orientation (coding, documents).
Yes
Pivot Angle Range
0 - 90 °
Colour
Black
Net Weight
5.7 kg
Stand Included
Yes
Swivel Angle
How far left/right the monitor can rotate on its stand.
-45 - 45 °
Swivel Adjustment
Yes
Tilt Adjustment
Yes
Tilt Adjustment
-5 - 20 °
VESA Mounting
VESA hole pattern (e.g. 100×100 mm) for monitor arms and wall mounts.
Yes
Wall Mountable
Yes
Weight (without stand)
5700 g
Width (without stand)
539.6 mm
Detachable Stand
Yes
Additional
Energy Efficiency Scale
A to G
EPREL Version
1
Warranty
36
SKU
1419182
EAN
6923172579744
