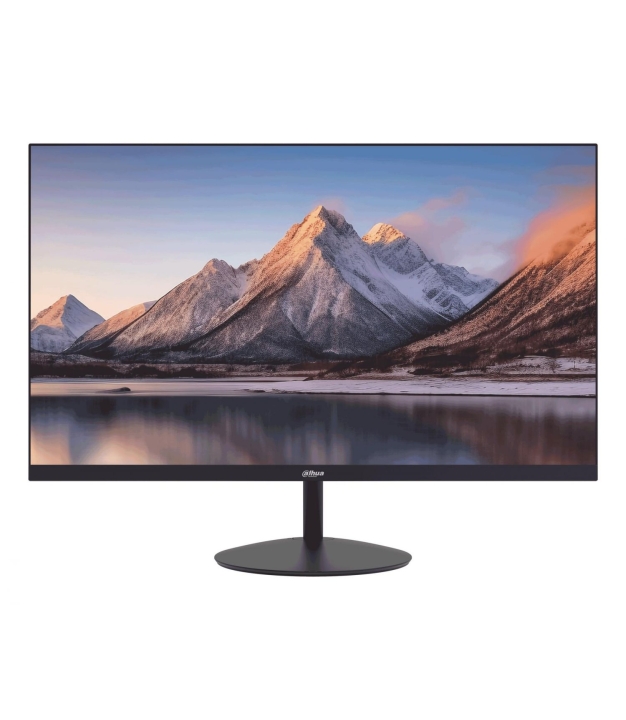

LCD Monitor, DAHUA, LM22-A200Y, 21.45, Panel VA, 1920x1080, 16:9, 100Hz, 10 ms, DHI-LM22-A200Y
MPN:
DHI-LM22-A200Y
Brand:
DAHUA
Screen Size:
54.5 cm (21.45")
Resolution:
1920 x 1080 pixels
Refresh Rate:
100 Hz
€101.64
/ incl. VAT
€84.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Ultra-narrow bezel , elegant appearance, plastic base
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- High fidelity digital processing for a brilliant and vivid video
- Support multiple signal inputs such as HDMI, VGA
- 100Hz high refresh rate, eliminates picture lagging
Specifications
General
Model Name
LM22-A200Y
EPREL Registration No.
EU product database registration number for energy efficiency compliance.
2139333
Data Sheet
https://eprel.ec.europa.eu/api/product/2139333/fiches?language=EN
Certifications
CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Current Rating
2 A
Model
DHI-LM22-A200Y
Operating Humidity
10 - 90 %
Display
Energy Efficiency Class (HDR)
Not available
Contrast Ratio
Static contrast ratio measures how much brighter pure white is than pure black on the panel. Higher contrast means deeper blacks and more punch. Typical IPS panels reach 1000:1, VA panels 3000:1, OLED panels effectively infinite contrast.
3000:1
Colour Depth
8 bit
Panel Type
Panel type sets the colour, contrast and viewing-angle character of the monitor. IPS = wide viewing angles, accurate colour, moderate contrast; VA = high contrast and deep blacks, narrower angles; TN = fastest response but limited angles; OLED = perfect b
VA
Screen Shape
Flat
Built-in Webcam
No
Colour Space
sRGB: standard for web/office. DCI-P3: cinema/photo editing. Adobe RGB: pro photo.
NTSC
Typical Brightness
250 cd/m²
Screen Size (cm)
56 cm
Display Technology
IPS: wide angles. VA: high contrast. OLED: perfect blacks. TN: fast response.
LED
Resolution Class
FHD=1920×1080, QHD=2560×1440, 4K=3840×2160, OLED refers to panel type.
Full HD
Backlight
Edge-lit: thinner, less uniform. Direct-lit/Full-array: brighter, local dimming.
Yes
Aspect Ratio
16:9 = standard widescreen. 16:10 = more vertical space. 21:9 = ultrawide.
16:9
Transfer Time
Pixel response time (ms) is how long a pixel needs to change colour. Lower numbers cut motion blur and ghosting in fast scenes. 1-5 ms is fine for gaming; 5-10 ms is acceptable for productivity. Manufacturers usually quote the best-case GtG number; real-w
10 ms
Touchscreen
No
Horizontal Viewing Angle
IPS panels typically 178°. Narrower angles (TN) cause colour shifts from the side.
178 °
Vertical Viewing Angle
178 °
Backlight Type
Edge LED
Bottom Bezel Width
15.2 mm
Side Bezel Width
3.3 mm
Top Bezel Width
3.3 mm
Frameless Design
Yes
Front Bezel Colour
Black
Ntsc Coverage Typical
72 %
Storage
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
30000 h
Connectivity
HDMI
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
1.4
Headphone Output
No
Built-in USB Hub
No
VGA Ports
1
Audio
Built-in Speakers
No
Power
Energy Class
EU energy label A–G. A is most efficient.
E
Energy Consumption SDR (kWh/1000h)
15 kWh
Energy Efficiency Class (SDR)
E
Ac Adapter Output Voltage
12 V
Power Consumption (Off)
0.1 W
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
16 W
Standby Power
0.1 W
Max Power Draw
16 W
Power Supply Type
External
Physical
Depth (without stand)
41.2 mm
Stand Colour
Black
Height Adjustment
No
Height (without stand)
284 mm
Mounting Interface
75 x 75 mm
Colour
Black
Net Weight
2.05 kg
Stand Included
Yes
Tilt Adjustment
Yes
Tilt Adjustment
-5 - 15 °
VESA Mounting
VESA hole pattern (e.g. 100×100 mm) for monitor arms and wall mounts.
Yes
Wall Mountable
Yes
Weight (without stand)
2050 g
Width (without stand)
492.7 mm
Detachable Stand
Yes
Additional
Energy Efficiency Scale
A to G
EPREL Version
1
Warranty
36
SKU
1443730
EAN
6939554907173
