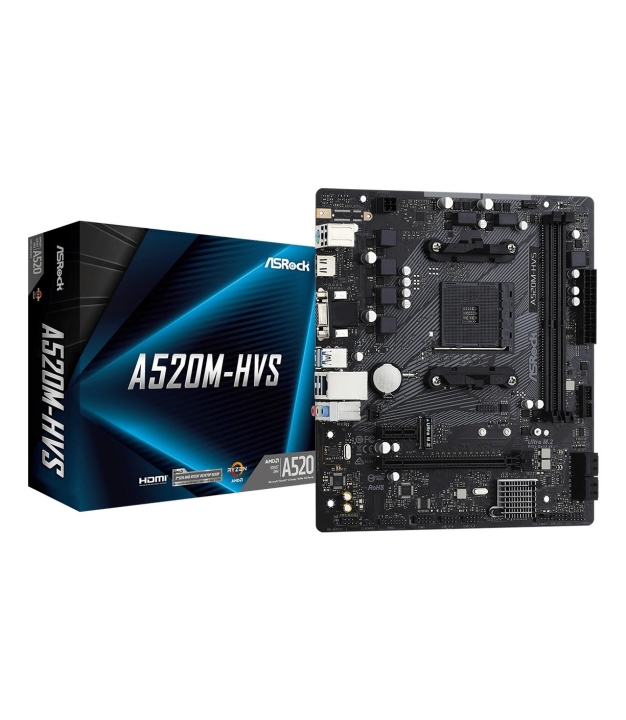

Mainboard, ASROCK, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, A520M-HVS
MPN:
A520M-HVS
Brand:
ASROCK
CPU Socket / Platform:
AMD Ryzen 3000 Series
Chipset:
AMD A520
Memory Slot Type:
DIMM
€62.13
/ incl. VAT
€51.35
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
100+ in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
- 6 x USB 2.0(2 x Rear, 4 x Front)
- Realtek Gigabit LAN
Specifications
General
HS Code
84733020
Wake On Lan Ready
Yes
Processor
CPU Brand
AMD
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM4
Memory
Max Supported RAM
64 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
2
Supported Memory Speeds
2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4500/4533 MHz
Supported Memory Types
DDR4-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Storage
HDD Bays
5
Supported Interfaces
M.2, SATA III
Graphics
Graphics Card
Radeon Vega
Graphics Card Family
AMD
Connectivity
LAN Speed
Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
HDMI Ports
1
Microphone Input
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
4
Wi-Fi
No
COM (Serial) Ports
1
PS/2 Ports
1
PCIe 3.0 x16 Slots
1
Pci Express X1 Gen 3 X Slots
1
VGA Ports
1
Audio
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
2
Features
Drivers Included
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8111H
Compatibility
BIOS Type
UEFI AMI
Compatible With
PC
Physical
Depth
201 mm
Width
230 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
micro ATX
Additional
Warranty
24
SKU
1309552
EAN
4710483932311
