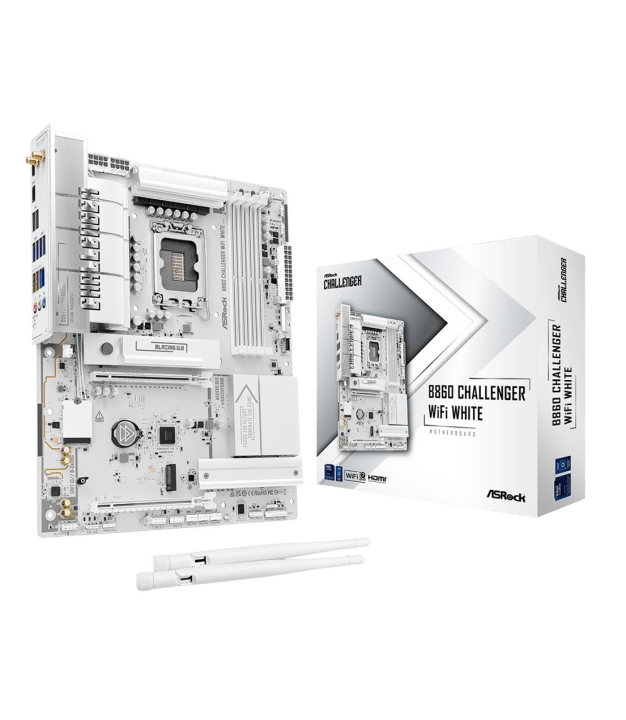

Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNumber of M.2 (M) slots, B860CHALLENGERWIFIWH
MPN:
B860 CHALLENGER WIFI WHITE
Brand:
ASROCK
CPU Socket / Platform:
Intel Core Ultra (Series 2)
Chipset:
Intel B860
Memory Slot Type:
DIMM
€188.09
/ incl. VAT
€155.45
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution, delivering robust specs with Wi-Fi 7 and gamer-centric specs. Featuring an elegant design with comprehensively pure white components, it stands as the visual centerpiece for pristine white gaming builds.
Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.
Forge the Future Dominate the Game
Challenger Series is all about fearless play, bold breakthroughs, and relentless evolution. Packed with solid specs at a gamer-friendly price, it’s the ultimate option for gamers.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Specifications
General
Bios Flashback Button
Yes
Certifications
CE/Federal Communications Commission (FCC)
Sustainability Certs
ErP
Processor
CPU Brand
Intel
XMP Support
Intel XMP (Extreme Memory Profile) and the equivalent AMD EXPO let the motherboard apply factory-tested high-speed RAM timings with one BIOS click. Without enabling XMP/EXPO the modules run at the conservative JEDEC default, leaving advertised speed unuse
Yes
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1851 (Socket V1)
Display
HDR Support
High Dynamic Range . wider brightness and colour range for more realistic content.
Yes
Memory
Max Supported RAM
256 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
8666 MHz
Supported Memory Speeds
4400/4800/5600/6533/6800/8666 MHz
Supported Memory Types
DDR5-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Storage
HDD Bays
4
M.2 Slots
1
SATA III Ports
4
Drive Bays
7
RAID Levels
0/1/10/5
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
PCI Express 5.0, M.2, SATA III
Supported Drive Types
HDD & SSD
M.2 Slot 1: PCIe Gen
5.0
M.2 Slot 1: Key Size
2280
M.2 Slot 2: PCIe Gen
4.0
M.2 Slot 2: Key Size
2280
M.2 Slot 3: PCIe Gen
4.0
M.2 Slot 3: Key Size
2280
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.4
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 7 (802.11be)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Antenna Included
Yes
LAN Speed
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Microphone Input
Yes
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
8
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
9
USB 3.2 Gen 1 Type-A Ports
6
USB 3.2 Gen 2 Type-A Ports
2
Wi-Fi
Yes
Wi-Fi Antenna Jack
2
Line In
Yes
PCIe x16 Slots
1
USB 3.2 Gen 2 Headers
1
HDCP Version
2.3
USB 3.2 Gen 1 Type-C Ports
1
Audio
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
12V Power Connector
ATX 12V connector supplying power to the CPU voltage regulator.
Yes
Number Of Eatx Power Connectors
1
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
4
CPU Fan Headers
2
Water Pump Headers
1
Features
ARGB/RGB Header
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Dragon RTL8125BG
M 2 Standoff Included
Yes
Screws Included
Yes
Compatibility
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1851
Windows Support
Windows 11 x64
Physical
Depth
305 mm
Width
244 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Colour
White
Additional
Warranty
36
SKU
1460776
EAN
4711581494183
