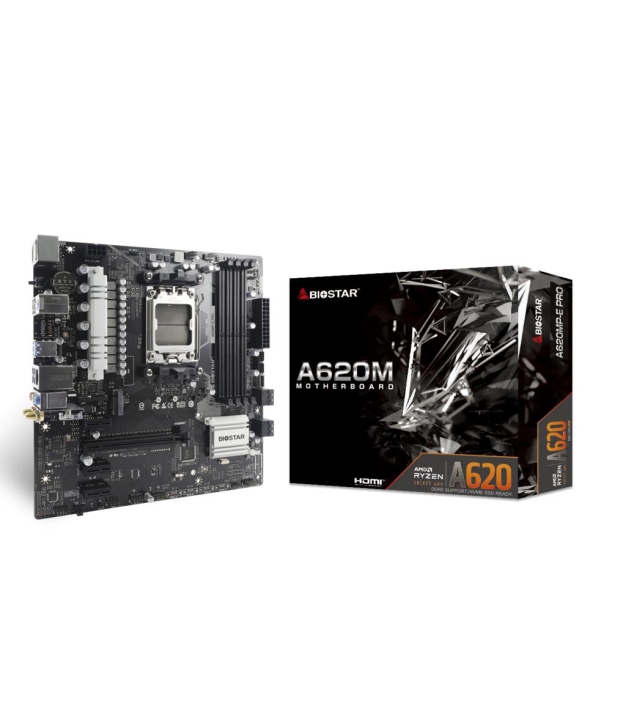

Mainboard, BIOSTAR, AMD A620, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 2xPCI-Express 4.0 1x, 1xPCI-Express 4.0 16x, 1xM.2, 1xHDMI, 1xDisplayPort, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, A620MP-EPRO
MPN:
A620MP-E PRO
Brand:
BIOSTAR
CPU Socket / Platform:
AMD Ryzen 7000 Series
Chipset:
AMD A620
Memory Slot Type:
DIMM
€143.09
/ incl. VAT
€118.26
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Specifications
General
Model
A620MP-E PRO
Processor
CPU Brand
AMD
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM5
Memory
Max Supported RAM
128 GB
Memory Slots
4
Supported Memory Speeds
4800/5200/5400/5600/6000 MHz
Supported Memory Types
DDR5-SDRAM
Storage
SATA III Ports
4
Supported Interfaces
SATA III
Connectivity
DisplayPort Ports
1
LAN Speed
2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
4
Wi-Fi
No
COM (Serial) Ports
1
PS/2 Ports
1
USB 3.2 Gen 2 Headers
1
Pci Express X1 Gen 3 X Slots
1
Pci Express X1 Slots
2
Audio
Audio Connector
Yes
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Cooling
CPU Fan Header
Yes
Features
Drivers Included
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8125B
Compatibility
Compatible With
PC
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Physical
Depth
244 mm
Width
244 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
micro ATX
Additional
Warranty
36
SKU
1435387
EAN
4712960687417
