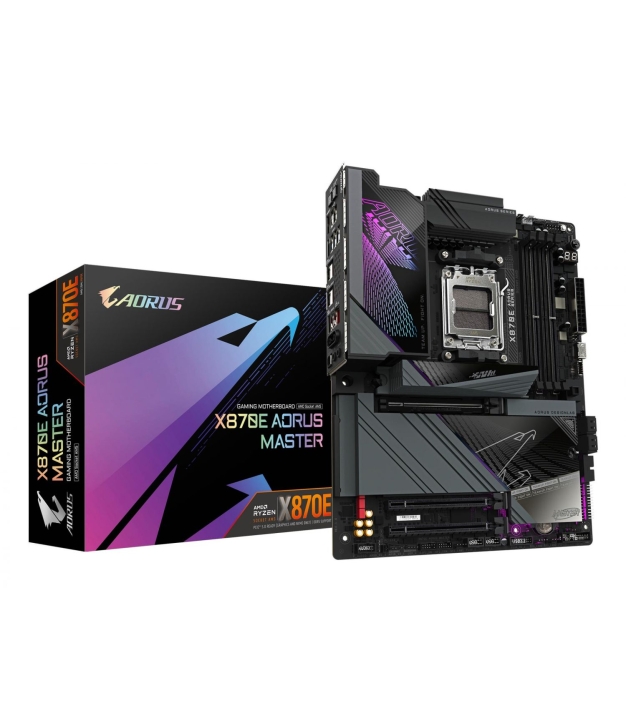

GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
MPN:
X870EAORUSMASTER
Brand:
GIGABYTE
CPU Socket / Platform:
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset:
AMD X870
Memory Slot Type:
DIMM
€702.19
/ incl. VAT
€580.32
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
General
Model
X870E AORUS MASTER
Processor
CPU Brand
AMD
Max RAM (CPU Limit)
256 GB
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM5
Memory
Max Supported RAM
256 GB
Max RAM per Slot
64 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
8600 MHz
Supported Memory Speeds
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz
Supported Memory Types
DDR5-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
ECC & Non-ECC
Supported Memory Module Capacities
12GB/1GB/24GB/2GB/32GB/4GB/8GB
Keyboard & Input
A 4th M 2 Largest Key Size
22110
Storage
HDD Bays
4
M.2 Slots
4
SATA III Ports
4
Drive Bays
8
RAID Levels
0/1/10
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
M.2 Slot 1: PCIe Gen
5.0
M.2 Slot 1: Key Size
25110
M.2 Slot 2: PCIe Gen
5.0
M.2 Slot 2: Key Size
22110
M.2 Slot 3: PCIe Gen
5.0
M.2 Slot 3: Key Size
22110
Graphics
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.3
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 7 (802.11be)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
Wi-Fi 7 (802.11be)
Antenna Included
Yes
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
LAN Speed
5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Headphone Outputs
1
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
2
USB 3.2 Gen 1 Type-A Ports
4
USB 3.2 Gen 2 Type-A Ports
4
USB 3.2 Gen 2×2 Headers
1
Wi-Fi
Yes
Wi-Fi Antenna Jack
2
WLAN Chip
Qualcomm QCNCM865
Line In
Yes
PCIe x16 Slots
1
PCIe 3.0 x16 Slots
1
PCIe x4 Slots
2
USB4 Gen 2x2 Ports
2
A 4th M 2 Hi Pci Express Gen
4.0
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Chip
Realtek ALC1220
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
S/PDIF Optical Out
Digital optical audio output for connecting to AV receivers, soundbars or home cinema.
Yes
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
EPS Power Connectors
2
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
6
CPU Fan Headers
2
Water Pump Headers
2
Features
Clear CMOS Button
Physical button to reset BIOS settings without opening the case.
Yes
Clear CMOS Jumper
Yes
ARGB/RGB Headers
5
System Health Monitoring
Fan/Temperature/Voltage
ARGB/RGB Header
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8126
Screws Included
Yes
Compatibility
ACPI Version
5.0
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
Socket AM5
SMBIOS Version
2.7
Windows Support
Windows 11 x64
Physical
Weight
2.540000
Depth
244 mm
Height
35 mm
Width
305 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Colour
Black
Additional
Country of Origin
China
Warranty
36;3 year(s)
SKU
1424631
EAN
4719331864354
CN Code
84733020
