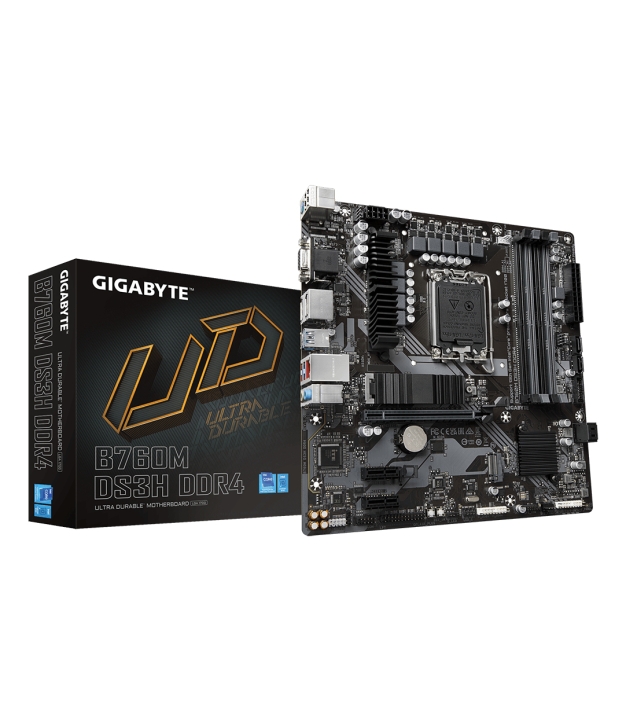

Mainboard, GIGABYTE, B760M DS3H DDR4, Intel B760 Express, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots, 2xNumber of M.2 (M) slots, B760MDS3HDDR4
Brand:
GIGABYTE
CPU Socket / Platform:
Intel® Core™ i9, Intel® Celeron, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold
Chipset:
Intel B760 Express
Memory Slot Type:
DIMM
€112.52
/ incl. VAT
€92.99
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
13 in Stock
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor
CPU Brand
Intel
Max RAM (CPU Limit)
128 GB
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1700
Display
Supported Displays
4
Memory
Max Supported RAM
128 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
5333 MHz
Supported Memory Speeds
2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Supported Memory Types
DDR4-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Storage
HDD Bays
4
M.2 Slots
2
SATA III Ports
4
Drive Bays
6
RAID Levels
0, 1, 5, 10
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
SATA Ports (Total)
4
Graphics
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Connectivity
DisplayPort Ports
2
LAN Speed
2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
Headphone Outputs
1
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
3
USB 3.2 Gen 2 Type-C Ports
1
Line In
Yes
PS/2 Ports
1
S/PDIF Output
Yes
PCIe 3.0 x16 Slots
1
Parallel Connector
Yes
VGA Ports
1
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Power Source
ATX
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
3
Features
Clear CMOS Jumper
Yes
System Health Monitoring
Fan, Temperature, Voltage, Water cooling
ARGB/RGB Header
Yes
Serial (COM) Headers
1
Compatibility
ACPI Version
5.0
BIOS Memory
128 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
4096 x 2304 pixels
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1700
SMBIOS Version
2.7
Windows Support
Windows 10, Windows 11
Physical
Depth
244 mm
Height
35 mm
Width
244 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
micro ATX
Additional
Country of Origin
China
SKU
1388806
EAN
4719331850876
