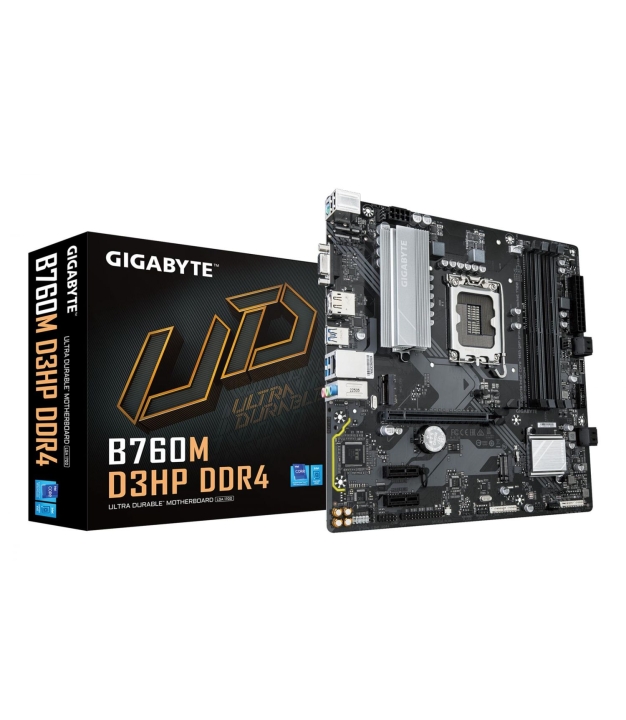

GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1
MPN:
B760M D3HP DDR4
Brand:
GIGABYTE
CPU Socket / Platform:
Intel® Core™ i9, Intel® Celeron, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold
Chipset:
Intel B760 Express
Memory Slot Type:
DIMM
€143.05
/ incl. VAT
€118.22
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
General
Model
B760M D3HP DDR4
Processor
CPU Brand
Intel
Max RAM (CPU Limit)
128 GB
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1700
Memory
Max Supported RAM
128 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
5333 MHz
Supported Memory Speeds
2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Supported Memory Types
DDR4-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
ECC & Non-ECC
Supported Memory Module Capacities
12GB/16GB/1GB/2GB/32GB/4GB/8GB
Storage
HDD Bays
4
M.2 Slots
2
SATA III Ports
4
Drive Bays
6
RAID Levels
0/1/10/5
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
SATA Ports (Total)
4
Connectivity
USB Connector Type
USB Type-A
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
DisplayPort Ports
2
LAN Speed
Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Headphone Outputs
1
Microphone Input
Yes
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
2
USB 3.2 Gen 1 Headers
1
USB 3.2 Gen 1 Type-A Ports
3
Wi-Fi
No
Line In
Yes
PCIe x16 Slots
1
PS/2 Ports
1
S/PDIF Output
Yes
PCIe 3.0 x16 Slots
1
PCIe x4 Slots
1
Number Of Parallel Ata Connectors
1
Parallel Connector
Yes
Pci Express X1 Gen 3 X Slots
1
Pci Express X1 Slots
1
VGA Ports
1
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Connector
Yes
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Digital Audio Optical Out
3
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Power Source
ATX
12V Power Connector
ATX 12V connector supplying power to the CPU voltage regulator.
Yes
Power Fan Connector
Yes
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
3
Features
Clear CMOS Jumper
Yes
System Health Monitoring
Fan/Temperature/Voltage/Water cooling
ARGB/RGB Header
Yes
Serial (COM) Headers
1
Compatibility
ACPI Version
5.0
BIOS Memory
128 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
4096 x 2304 pixels
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1700
SMBIOS Version
2.7
Windows Support
Windows 10/Windows 11
Physical
Depth
244 mm
Height
35 mm
Width
244 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
micro ATX
Colour
Brown
Additional
Country of Origin
China
Warranty
36;3 year(s)
SKU
1431033
EAN
4719331862848
CN Code
84733020
