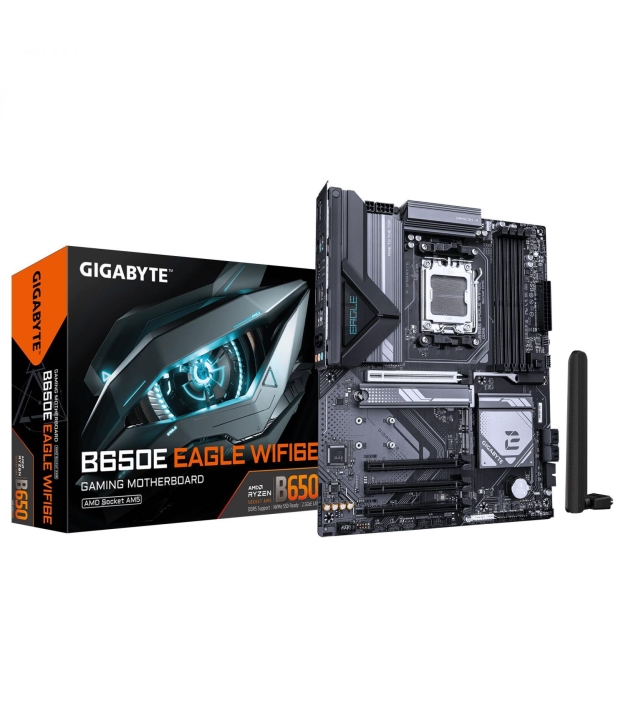

Mainboard, GIGABYTE, SAM5, ATX, Memory DDR5, Memory slots 4, B650EEAGLEWF6E1.0
MPN:
B650E EAGLE WF6E 1.0
Brand:
GIGABYTE
CPU Socket / Platform:
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset:
AMD B650
Memory Slot Type:
DIMM
€180.24
/ incl. VAT
€148.96
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- AMD Socket AM5: Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance: 8+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- Fast Networks: Wi-Fi 6E 802.11ax & GbE LAN
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- Extended Connectivity: DP, HDMI, Rear USB 10Gb/s
Specifications
General
Model
B650E EAGLE WIFI6E
Processor
CPU Brand
AMD
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM5
Memory
Max Supported RAM
256 GB
Max RAM per Slot
64 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Max Memory Speed
8200 MHz
Supported Memory Speeds
4800/5200/5600/6000/6200/6400/6600/6800/7200/7600/7800/7900/7950/8000/8200 MHz
Supported Memory Types
DDR5-SDRAM
Unbuffered (UDIMM)
Yes
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Storage
HDD Bays
4
M.2 Slots
3
SATA III Ports
4
Drive Bays
7
RAID Levels
0/1/10/5
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
M.2 Slot 1: PCIe Gen
5.0
M.2 Slot 1: Key Size
22110
M.2 Slot 2: PCIe Gen
4.0
M.2 Slot 2: Key Size
22110
M.2 Slot 3: PCIe Gen
4.0
M.2 Slot 3: Key Size
22110
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.3
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 6E (802.11ax)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Antenna Included
Yes
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
LAN Speed
2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDCP
HDCP (High-bandwidth Digital Content Protection) is the copy-protection signalling required to play DRM-protected 4K and 8K video (Netflix UHD, Blu-ray, streaming services). Without HDCP support on both the GPU and the display, those streams downscale or
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
Headphone Outputs
1
Microphone Input
Yes
PCIe 4.0 x16 Slots
1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
2
USB 2.0 Ports (Rear)
4
USB 3.2 Gen 1 Headers
2
USB 3.2 Gen 1 Type-A Ports
2
USB 3.2 Gen 2 Type-A Ports
2
Wi-Fi
Yes
Wi-Fi Antenna Jack
2
WLAN Chip
MediaTek MT7902
Line In
Yes
PCIe x16 Slots
1
PS/2 Ports
1
PCIe 3.0 x16 Slots
2
HDCP Version
2.3
USB 3.2 Gen 1 Type-C Ports
1
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Battery Cells
1
Audio
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
EPS Power Connectors
1
Molex Connectors
1
Power Source
ATX
12V Power Connector
ATX 12V connector supplying power to the CPU voltage regulator.
Yes
Cooling
CPU Fan Header
Yes
Chassis Fan Headers
4
CPU Fan Headers
2
Water Pump Headers
2
Cooling Type
Passive
Features
Clear CMOS Jumper
Yes
ARGB/RGB Headers
4
System Health Monitoring
Fan/Temperature/Voltage/Water cooling
ARGB/RGB Header
Yes
LAN Controller
Wired Ethernet chipset model (e.g. Intel I226-V, Realtek RTL8125).
Realtek RTL8125
Screws Included
Yes
Compatibility
ACPI Version
5.0
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
DMI Version
2.7
DirectX Version
DirectX 12 Ultimate required for ray tracing and mesh shaders in modern games.
12.0
Resolution
Highest output resolution the card can drive to a single display. 7680x4320 (8K) requires DisplayPort 2.1 or HDMI 2.1; 3840x2160 (4K) needs DisplayPort 1.4 or HDMI 2.0. The monitor and cable must support the same standard to actually run at the rated reso
4096 x 2160 pixels
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
Socket AM5
SMBIOS Version
2.7
Windows Support
Windows 10 x64/Windows 11 x64
Physical
Weight
1.680000
Depth
244 mm
Height
35 mm
Width
305 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Colour
Dark brown
Additional
Country of Origin
China
Warranty
36;3 year(s)
SKU
1451392
EAN
4719331877798
