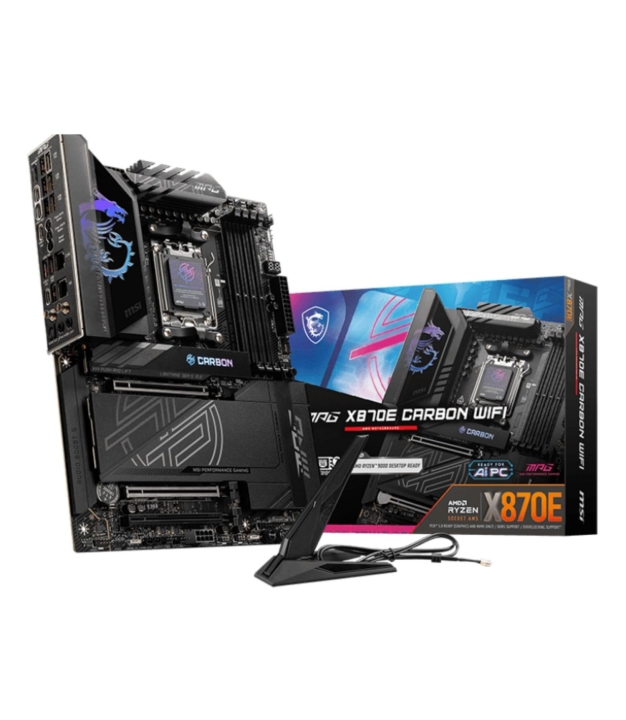

MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX
MPN:
MPG X870E CARBON WIFI
Brand:
MSI
CPU Socket / Platform:
AMD Ryzen™ 7
Chipset:
AMD X870E
Memory Slot Type:
DIMM
€652.23
/ incl. VAT
€539.03
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Specifications
General
Model
MPG X870E CARBON WIFI
Processor
CPU Brand
AMD
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
Socket AM5
Memory
Max Supported RAM
256 GB
Memory Channels
Dual-channel (2) doubles bandwidth vs single-channel; quad-channel for servers.
Dual-channel
Memory Slots
4
Supported Memory Types
DDR5-SDRAM
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Storage
M.2 Slots
4
SATA III Ports
4
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, SATA III
Supported Drive Types
HDD & SSD
SATA Ports (Total)
4
Graphics
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.4
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 7 (802.11be)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
Wi-Fi 7 (802.11be)
DisplayPort Ports
2
LAN Speed
2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
HDMI Ports
1
Microphone Input
Yes
USB 2.0 Headers (Internal)
4
USB 3.2 Gen 1 Type-A Ports
6
USB 3.2 Gen 2 Type-A Ports
2
Wi-Fi
Yes
PCIe x16 Slots
1
USB4 Gen 2x2 Ports
2
USB 3.2 Gen 1 Type-C Ports
2
Audio
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
S/PDIF Optical Out
Digital optical audio output for connecting to AV receivers, soundbars or home cinema.
Yes
Power
ATX 24-pin Connector
Yes
EPS 8-pin CPU Power
Yes
Cooling
CPU Fan Header
Yes
Features
System Health Monitoring
CPU/Fan/Temperature/Voltage
Compatibility
Compatible With
PC
Supported CPU Socket
Socket AM5
Physical
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Colour
Black
Additional
Warranty
36
SKU
1422892
EAN
4711377253536
CN Code
84733020
