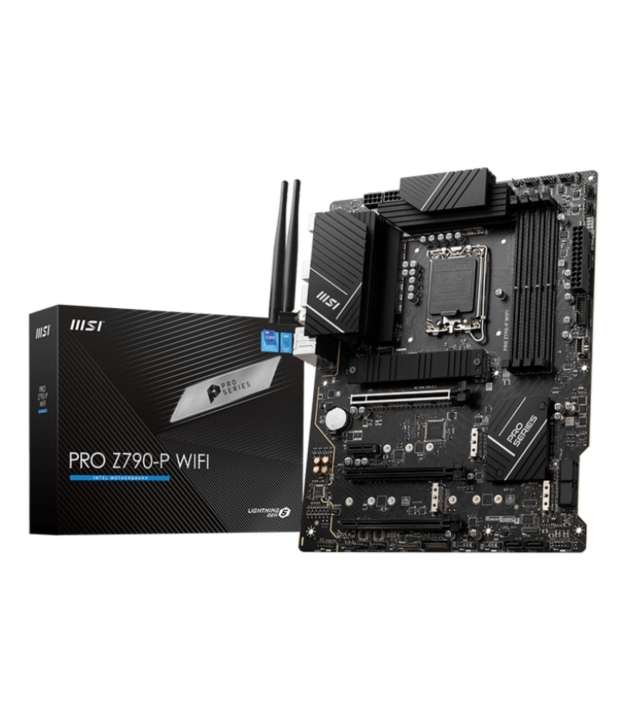

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX
MPN:
PROZ790-PWIFI
Brand:
MSI
CPU Socket / Platform:
Intel® Celeron, Intel® Pentium® Gold
Chipset:
Intel Z790
€219.40
/ incl. VAT
€181.32
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
50 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Specifications
General
Model
PRO Z790-P WIFI
Processor
CPU Brand
Intel
CPU Socket
The physical socket on the motherboard (e.g. LGA1700, AM5). Must match.
LGA 1700
Memory
Max Supported RAM
128 GB
Memory Slots
4
Max Memory Speed
7000 MHz
Supported Memory Speeds
4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz
Supported Memory Types
DDR5-SDRAM
ECC Support
Error-Correcting Code memory support. Critical for servers and workstations.
Non-ECC
Storage
M.2 Slots
4
Internal Storage
10 GB
SATA III Ports
6
RAID Levels
0/1/10/5
RAID Support
RAID (Redundant Array of Independent Disks) combines drives for speed or redundancy. RAID 0=speed, RAID 1=mirror.
Yes
Supported Interfaces
M.2, PCI Express
Supported Drive Types
HDD & SSD
Graphics
Integrated Graphics
Built-in GPU for display output. Not suitable for gaming or 3D workloads.
No
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.3
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 6 (802.11ax)
Wi-Fi
Wi-Fi generation sets peak speed and how well the device coexists with neighbours. Wi-Fi 6 (802.11ax) is the modern baseline; Wi-Fi 6E adds the cleaner 6 GHz band; Wi-Fi 7 (Be) brings multi-link operation and even higher peaks. The router and the client m
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
DisplayPort Version
DisplayPort version sets max resolution and refresh. DP 1.4 = 4K at 120 Hz, 8K at 60 Hz with DSC; DP 2.1 = 4K at 240 Hz, 8K at 120 Hz. DisplayPort tends to deliver higher refresh-rate gaming-friendly modes than HDMI at the same generation.
1.4
DisplayPort Ports
1
LAN Speed
2.5 Gigabit Ethernet
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
LAN Ports
1
Front Audio Header
Yes
Front Panel Header
Yes
HDMI Ports
1
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
TPM Header
Trusted Platform Module header for hardware security chip (required for Win 11).
Yes
USB 2.0 Headers (Internal)
4
USB 2.0 Ports (Rear)
4
USB 3.2 Gen 1 Headers
4
USB 3.2 Gen 1 Type-A Ports
2
USB 3.2 Gen 2 Type-A Ports
1
USB 3.2 Gen 2 Type-C Ports
1
Wi-Fi
Yes
USB 3.2 Gen 2 Headers
1
USB 3.2 Gen 2x2 Type-C
1
Audio
Audio Chip
Realtek ALC897
Audio Channels
2.0 = stereo. 5.1 = surround with subwoofer. 7.1 = full surround for gaming/cinema.
7.1 channels
S/PDIF Optical Out
Digital optical audio output for connecting to AV receivers, soundbars or home cinema.
Yes
Features
ARGB/RGB Header
Yes
Compatibility
BIOS Memory
256 Mbit
BIOS Type
UEFI AMI
Compatible With
PC
Parallel Processing
SLI (Scalable Link Interface, NVIDIA) / CrossFire (AMD) for linking two GPUs. Rarely used today.
Not supported
Supported CPU Socket
LGA 1700
SMBIOS Version
3.5
Windows Support
Windows 10 x64/Windows 11 x64
Physical
Depth
243.84 mm
Width
304.8 mm
Form Factor
ATX: full-size. mATX: medium. ITX: compact. Determines case compatibility.
ATX
Colour
Black
Additional
Warranty
36
SKU
1391417
EAN
4711377015738
