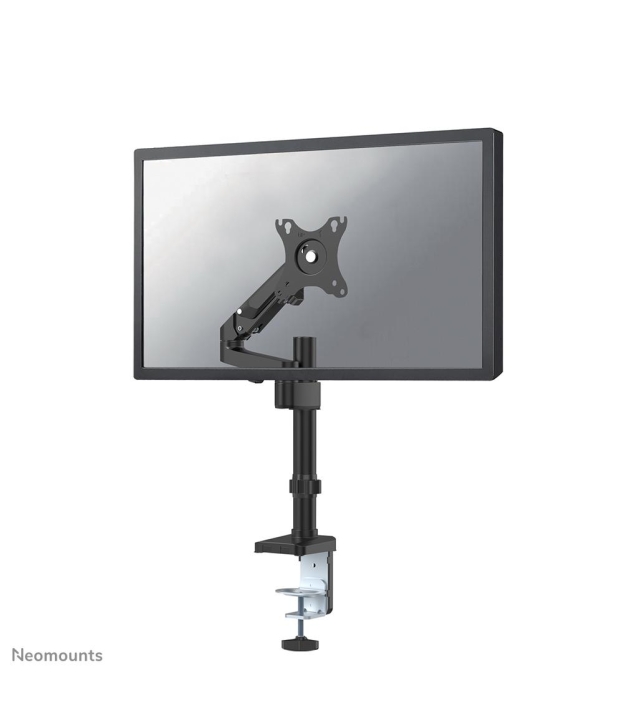

Neomounts DS70-750BL1 Monitor arm 17-27" - gas spring
MPN:
DS70-750BL1
Brand:
NEOMOUNTS
Mounting Type:
Desk
Screen Size Fit:
68.6 cm (27")
€113.40
/ incl. VAT
€93.72
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Neomounts DS70-750BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.
The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The DS70-750BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
Specifications
General
Angle Rotation
360 °
Rotating
Yes
Swivel Angle
How far left/right the monitor can rotate on its stand.
-90 - 90 °
Display
Min Supported Screen Size
17
Supported Displays
1
Maximum Weight Capacity Per Curved Ultra Wide Display
7 kg
Features
Mounting Orientation
Horizontal: disc tray opens forward. Vertical: drive is mounted upright.
Clamp/Grommet
Max Desk Thickness
85 mm
Orientation
Landscape/Portrait
Compatibility
Max VESA Mount
100 x 100 mm
Max Weight Capacity
7 kg
Max Weight per Display
7 kg
Min VESA Mount
75 x 75 mm
Physical
Weight
2.540000
Depth
440 mm
Height
679 mm
Width
117 mm
Cable Management
Yes
Height Adjustment
Yes
Height Adjustment Range
73 - 481 mm
Mounting Interface
100 x 100/75 x 75 mm
Colour
Black
Tilt Adjustment
Yes
Tilt Adjustment
-45 - 45 °
Height Adjustment Type
Gas spring
Swivel Adjustment
Yes
Adjustable Depth
Yes
Depth Adjustment Range
0 - 440 mm
Desk Thickness Min
10 mm
Minimum Weight
2 kg
Pivot Angle Range
-180 - 180 °
Width Adjustment Range
0 - 378 mm
Additional
Country of Origin
China
Warranty
60
SKU
1372116
EAN
8717371449193
HS Code
7326909890
