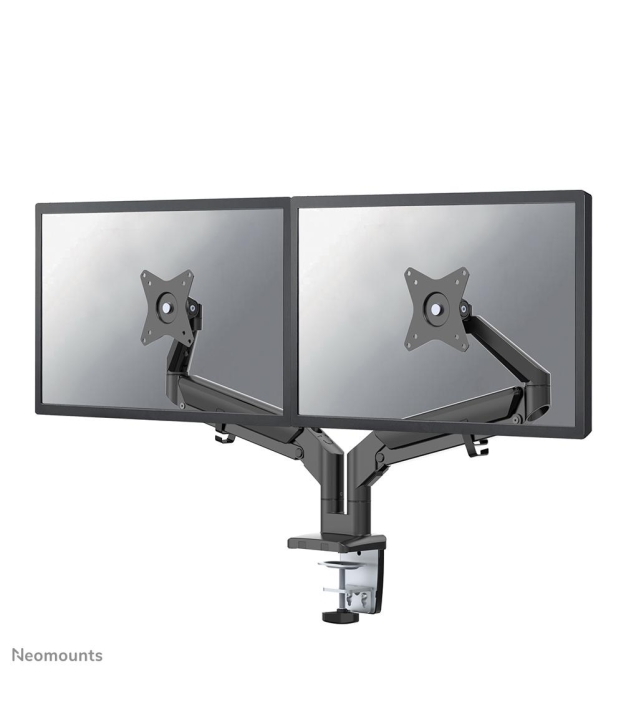

Neomounts DS70-810BL2 Monitor arm 17-32" - gas spring - space saving - 180°-stop
MPN:
DS70-810BL2
Brand:
NEOMOUNTS
Mounting Type:
Desk
Screen Size Fit:
81.3 cm (32")
€234.06
/ incl. VAT
€193.44
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Specifications
General
Angle Rotation
360 °
Rotating
Yes
Swivel Angle
How far left/right the monitor can rotate on its stand.
-90 - 90 °
Display
Min Supported Screen Size
17
Supported Displays
2
Features
Mounting Orientation
Horizontal: disc tray opens forward. Vertical: drive is mounted upright.
Clamp/Grommet
Max Desk Thickness
85 mm
Orientation
Landscape/Portrait
Compatibility
Max VESA Mount
100 x 100 mm
Max Weight Capacity
9 kg
Max Weight per Display
9 kg
Min VESA Mount
75 x 75 mm
Physical
Weight
5.200000
Depth
555 mm
Height
615 mm
Width
117 mm
Cable Management
Yes
Height Adjustment
Yes
Height Adjustment Range
265 - 550 mm
Mounting Interface
100 x 100/75 x 75 mm
Colour
Black
Tilt Adjustment
Yes
Tilt Adjustment
-45 - 45 °
Height Adjustment Type
Gas spring
Swivel Adjustment
Yes
Adjustable Depth
Yes
Depth Adjustment Range
0 - 490 mm
Desk Thickness Min
10 mm
Minimum Weight
1 kg
Pivot Angle Range
-180 - 180 °
Width Adjustment Range
0 - 1070 mm
Additional
Country of Origin
China
Warranty
60
SKU
1372119
EAN
8717371449223
HS Code
7326909890
