Special offer
Out of Stock
CLUB3D 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt
MPN:
CSV-2550
Brand:
CLUB3D
Resolution Class:
8K Ultra HD
Host Connection:
USB Type-C
USB-C Charging Power:
140 W
€127.69
/ incl. VAT
€105.53
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

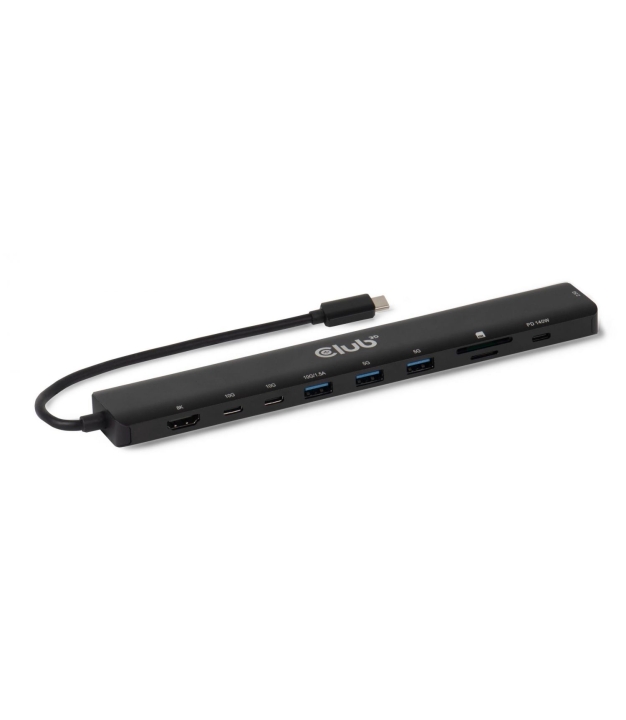

The Club 3D CSV-2550 is a 10-1 Portable Dock USB-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB-C® or Thunderbolt™® host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB-C® hosts.
Specifications
General
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Model
CSV-2550
Storage
Compatible Card Types
MicroSD (TransFlash), SD
Display
Refresh Rate
Refresh rate (Hz) is how many times per second the screen redraws its image. 60 Hz is the standard for productivity; 120-144 Hz feels noticeably smoother for everyday use; 240+ Hz benefits competitive gaming. Higher refresh rate also reduces motion blur.
120 Hz
Max Output Resolution
Highest resolution the dock can drive to a single connected display. 7680 x 4320 = 8K (requires Thunderbolt 5 / DisplayPort 2.1).
7680 x 4320 pixels
Connectivity
Card Reader
Yes
Connection Type
Wired
Memory Bandwidth
Memory bandwidth (GB/s or Gbps) is the maximum amount of data the GPU can move to and from VRAM per second. High-resolution textures and 4K rendering need high bandwidth; a fast GPU with too-narrow bandwidth becomes the bottleneck. Higher is always better
10 Gbit/s
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Data Rates
10/100/1000/2500 Mbit/s
LAN Ports
1
HDMI Ports
1
Microphone Input
No
USB 3.2 Gen 1 Type-A Ports
2
USB 3.2 Gen 2 Type-C Ports
2
HDMI Version
HDMI version determines the maximum supported resolution and refresh rate. HDMI 2.0 = 4K at 60 Hz, HDMI 2.1 = 4K at 120 Hz or 8K at 60 Hz with HDR. To run 4K120 the HDMI cable, source and display must all be 2.1.
2.1
USB 3.2 Gen 2 Type-A Ports
1
Power
USB Power Delivery
Allows charging via USB-C. PD wattage determines charging speed.
Yes
USB-PD Revision
3.1
Power Connector
USB Type-C
Power Source
USB
Physical
Weight
0.109000
Colour
Black
Host Cable Length
0.19 m
Additional
Warranty
24
SKU
1448447
EAN
8719214473389
HS Code
8473 3020
